L322 Range Rover Service Procedures
STEERING
57-12
REPAIRS

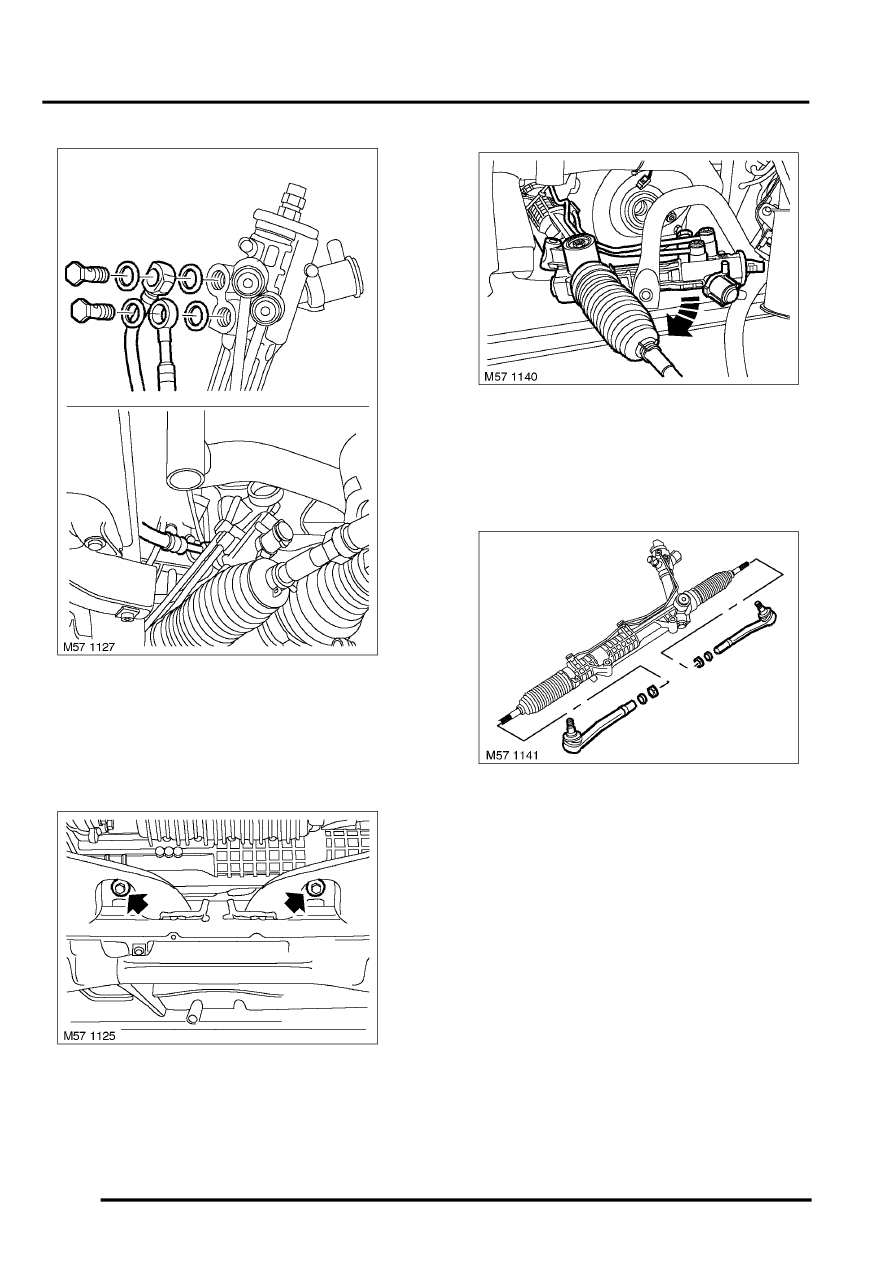

14. Note orientation, remove banjo bolts securing
fluid feed and return hoses to PAS rack and
discard sealing washers.
CAUTION: Always fit plugs to open
connections to prevent contamination.
15. Remove 2 bolts and 2 nuts securing PAS rack,
discard nuts and bolts.
16. With assistance, carefully release and rotate
PAS rack. Remove rack from LH side.
NOTE: Do not carry out further dismantling if
component is removed for access only.
17. Loosen track rod end locknuts and remove
track rod end ball joints from PAS rack. Note
the number of threads for refit. Discard locking
rings.
Refit
1. Fit locking nuts to track rods.
