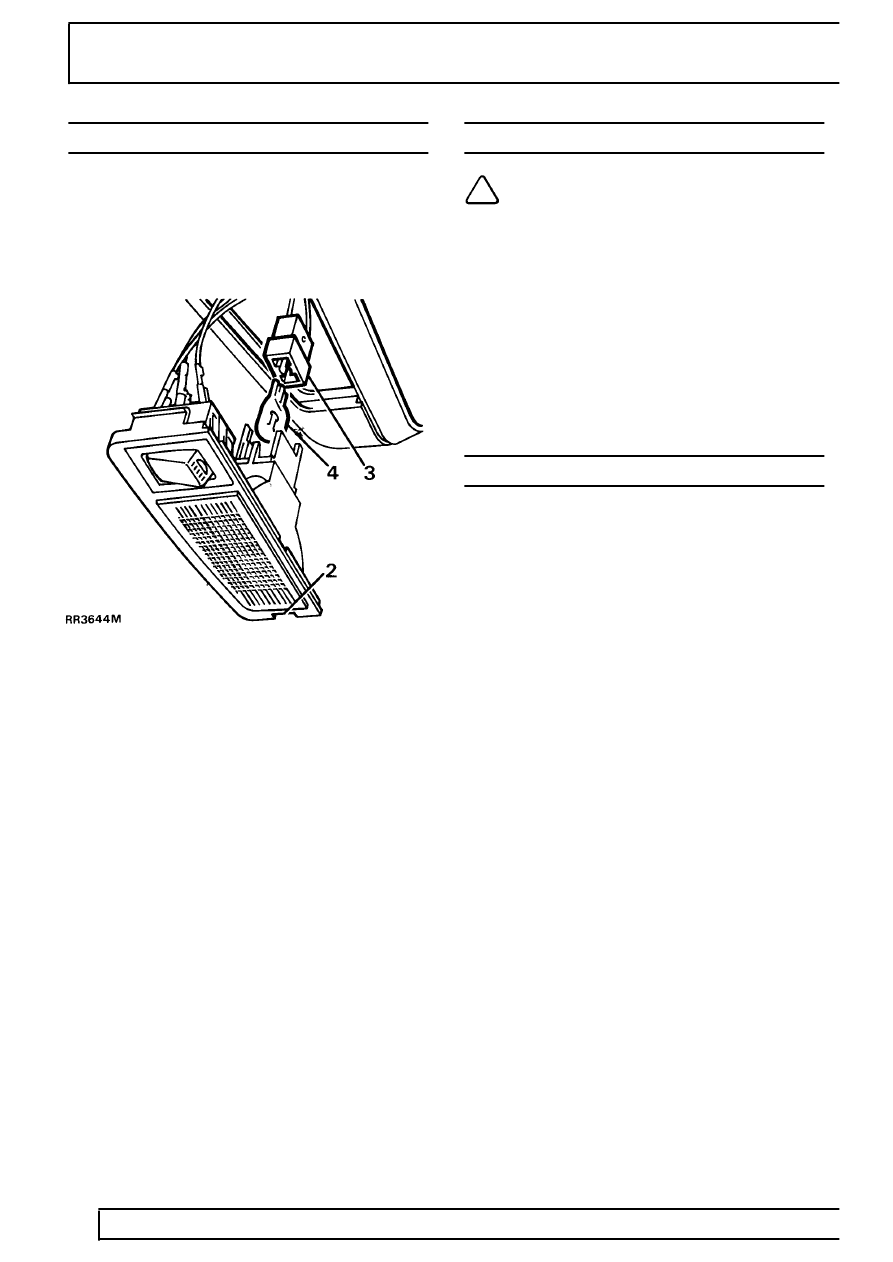

MAP LIGHT BULB RENEWAL
Service repair no - 86.45.09
Remove
1. Disconnect battery negative lead.
2. Pry slot to open cover.
3. Remove bulbholder.
4. Remove bulb from holder.
5. Replace bulb.
Refit
6. Reverse removal procedure.
ELECTRICAL SEAT FAILURE
NOTE: Carry out following procedure if
seat failure occurs with seat obscuring
fixing bolts.
1. Check 30A fuses and courtesy lamp fuse B2.
2. Disconnect 9 way connector between seat ECU
and motors (memory seat). Power motor from a
seperate battery source.
3. If partial failure occurs in forward and reverse
travel only, change drive cable as required to
move seat to desired position.
4. If 2. and 3. not possible, move seat by driving
cables manually.
DRIVE CABLE - ELECTRIC SEAT
Remove
1. Remove seat.
See CHASSIS AND BODY,
Repair, Front Seat Electrical
2. Cut cable tie, remove drive cable securing clips.
3. Remove drive cable from gearbox.
4. Remove drive cable from motor by unscrewing
ferrule.
5. Cut cable ties from drive cable. Note position for
reassembly.
6. Remove drive cable. If cable has failed, ’twist’
may have occurred in seat. To rectify this, use a
small screwdriver to turn gearbox of failed cable
until twist is removed.
Refit
7. Reverse removal procedure. Ensuring new cable
ties are fitted in original positions.
8. Operate seats to full extent of travel. To ensure
that ’twist’ has been removed, check that both
gearboxes stop simultaneously.
