Gearbox: Dismantling and assembling

Make

SEAT

Model

Leon Mk1

Section

02J 5-speed manual gearbox › Gearbox mechanics,operation, construction,diff. › Gearbox: Dismantling and assembling

Power transmissionGearbox: Dismantling and assembling

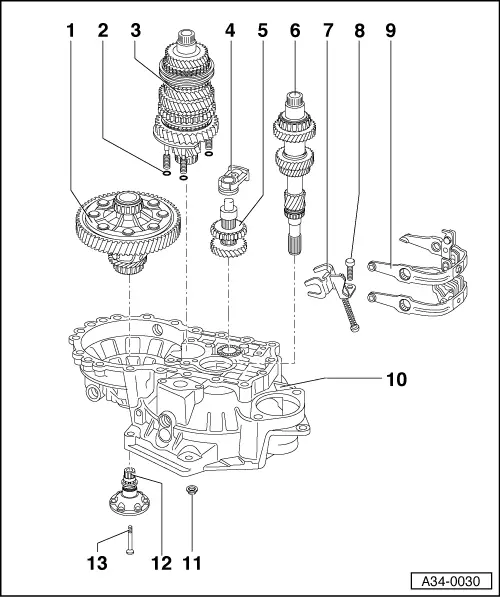

Input shaft, layshaft, differential and gearbox forks: removing and installing

1 -	Differential

q	Dismantling and assembling → Chapter

2 -

O-ring

q

4 units

q	Always renew

3 -

Layshaft

q	Dismantling and assembling → Chapter

4 -	Reverse gear shaft support

q	Removing and fitting → Chapter

5 -	Reverse gear shaft

q	Dismantling and assembling → Chapter

6 -	Input shaft

q	Dismantling and assembling → Chapter

7 -	Reverse gear fork

q	Repairing → Chapter

q	Installation position → Chapter

8 -	Torx screw

q

25 Nm

9 -	Gearbox actioning forks

q	Repairing → Chapter

10 -	Clutch housing

q	Repairing → Chapter

11 -	Hexagon nut

q	25 Nm + 90°

q	4 bolts for fitting layshaft

12 -	Articulation flange with pressure spring

q	Removing and fitting → Chapter

13 -	Conical bolt

q

25 Nm
