BodyDisassembling front bumper

Disassembling front bumper

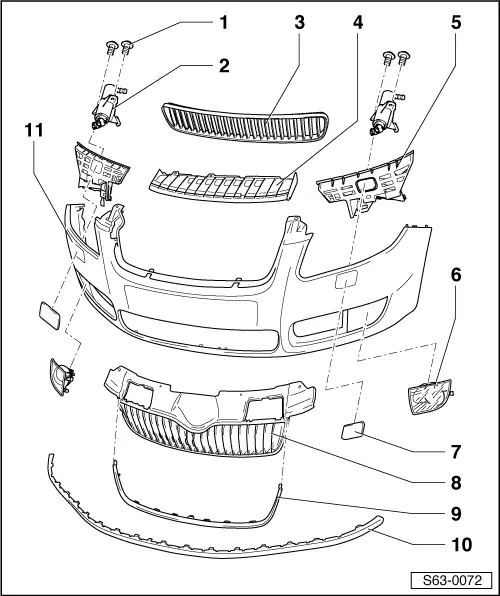

Disassembling front bumper – Skoda Fabia Mk2
1 - 1.5 Nm
2 - Headlamp cleaning system → Electrical System → Rep. gr.92
3 - Ventilation grid
4 - Bottom grid
5 - Holder for headlight cleaning system
6 - Fog light → Electrical System → Rep. gr.94
7 - Nozzle cap
8 - Decorative grid
q   Removing:
–  Lever out frame (Pos.9) with suitable device (depending upon vehicle equipment).
–  Lever decorative grid out of the bumper with suitable device.
q   Installing:
–  Lock decorative grid into position in the bumper.
–  Lock frame into position in the bumper (Pos. 9).
9 - Frame (depending upon vehicle equipment)
10 - Bottom spoiler
11 - Front bumper
q   Removing and installing → Chapter.
