Repairing the gearbox housing

Make
Skoda
Model
Octavia Mk1
Section
Gearbox 002 › Gearbox mechanics,operation, construction,diff. › Repairing the gearbox housing
Power transmissionRepairing the gearbox housing
Repairing the gearbox housing
Special tools and workshop equipment required
t  Multi-purpose tool -MP3-419 (VW771)-
t  Striker -MP3-606-
t  Interior extractor -Kukko 21/2-
t  Sealant -THREE BOND 1305-
t  Sealant -THREE BOND 1324-

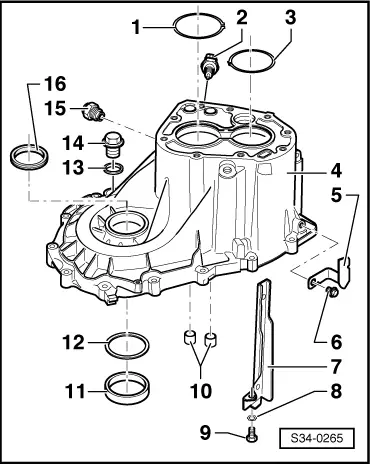

Repairing the gearbox housing – Skoda Octavia Mk1
1 - Circlip
q   for grooved ball bearing output shaft
q   Fitting position → Fig.
2 - Reversing light switch, 15 Nm
q   before installing apply sealant -THREE BOND 1324-
3 - Circlip
q   for grooved ball bearing output shaft
q   Fitting position → Fig.
4 - Gearbox housing
5 - Support
6 - Screw, 35 Nm
7 - Oil deflector
8 - Lock washer
9 - Screw, 10 Nm
10 - Bushing for gear shift rod
q   removing → Fig.
q   installing → Fig.
11 - Outer ring/tapered-roller bearing
q   for the differential gear
q   removing and installing → Chapter
q   when replacing: adjust the differential gear → Chapter
12 - Adjusting washer
q   for the differential gear
q   Determine thickness → Chapter
13 - Sealing ring
q   always replace → Electronic Catalogue of Original Parts
14 - Oil drain plug, 25 Nm
15 - Locking screw, 35 Nm
q   before installing apply sealant -THREE BOND 1305-
16 - Sealing ring
q   for left flange shaft
q   replace → Chapter


Fitting position of the circlips for input and output shaft
–  Insert the circlips as shown in the housing grooves of the geabox.
  S35-0025
Remove bushing for gear shift rod

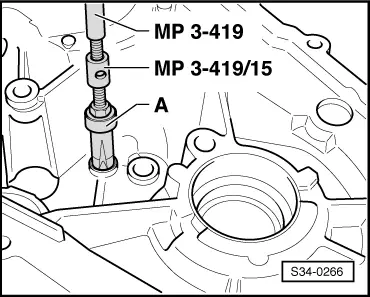

-A- Interior extractor 14.5...18.5 mm, e.g. interior extractor -Kukko 21/2-.
  S34-0266

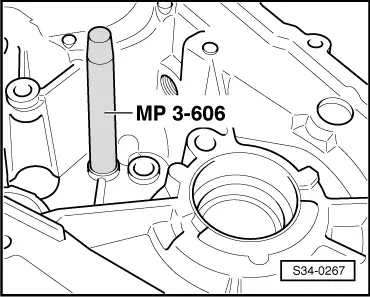

Drive in the bushing for the shiftrod up to the stop.
Secure the bushing at the same time against wandering with the striker -MP3-606-.
  S34-0267
