Repairing shift mechanism

Make

Skoda

Model

Yeti

Section

Gearbox 02Q › Gearbox mechanics,operation, construction,diff. › Repairing shift mechanism

Power transmissionRepairing shift mechanism

Install Installation is performed in the reverse order, pay attention to the following points: –  Align shift housing parallel to vehicle body. l  The distance to the vehicle body must be the same on both sides. Tighten shift housing.

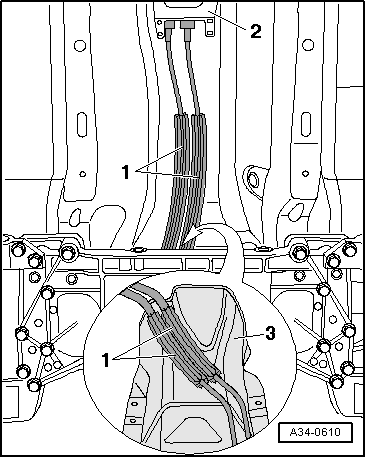

–  Lay the control cables -1- from the gearshift mechanism -2- to the gearbox as follows: l  The control cables must run parallel to one another and not cross each other. l  The control cables must be routed in the recess, provided for this, in the heat shield -3-. Diagram not available  Note The top of the heat shield is shown under the magnifying glass.

The control cables and the heat shield are held in position to one another by the clip -A-. The holes in the cable locks have different diameters. Assign cable locks → Fig.

–  Apply a small quantity of grease -G 000 450 02- onto the stud -arrow- of the gearbox shift lever -2-. –  Replace circlip -1- after each removal. –  Secure the shift cable with the lock washer -1-. –  Mount the plastic relay lever together with the cable lock → Chapter. –  Insert the selector cable into the cable lock. For vehicles with four-wheel drive –  Install the propshaft and the heat shield for the propshaft → Chapter. For all vehicles –  Assemble exhaust system free of stress and attach tunnel bridges → Engine; Rep. gr.26. –  Install underbody cover on right and left → Body Work; Rep. gr.50. –  Install the noise insulation → Body Work; Rep. gr.50.

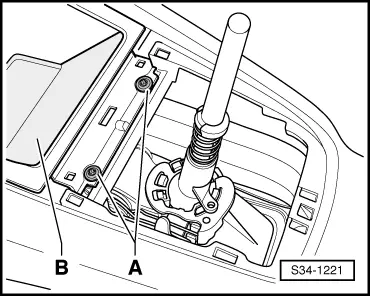

–  Install ashtray or storage compartment -B- and tighten the screws -A- → Body Work; Rep. gr.68. –  Setting the shift mechanism → Chapter.

–  Turn collar -1- inside out. –  Push the gearshift knob together with the collar -1- as far as the stop onto the shift lever -2-. –  Turn locking mechanism -1- by 45° to the left -direction of arrow-. While doing so, the surface -4- must point to the driver or front passenger seat. –  Install air filter → Engine; Rep. gr.23 or → Engine; Rep. gr.24. Diagram not available  Note After the battery earth strap is disconnected and connected, carry out additional operations → Electrical System; Rep. gr.27. –  Connect earth strap of battery while paying attention to the notes in the → Electrical System; Rep. gr.27.

Tightening torques

Component	Nm
Shift housing to body	→ Chapter
Cable support to gearbox	→ Chapter
Underbody cover	→ Body Work; Rep. gr.50
