Astra H

Replace glass sunroof cover – L69

  Remove

Object Number: 2405366 Size: DEFAULT

1.   Remove glass cover panelling (1)
•   Unscrew 4x bolt (3)
– Partially open sunroof
•   2x detach at rear (2)
– Partially close sunroof

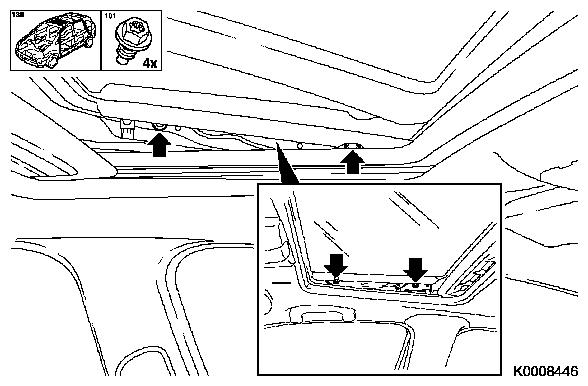

2.   Detach glass cover
•   Unscrew 4x bolts (arrow)
Object Number: 2405367 Size: DEFAULT


  Install

3.   Attach glass cover
•   Tighten 4x bolt
4.   Adjust glass cover as necessary LUREF_1.gif
5.   Install glass cover panelling
•   Tighten 4x bolt
– Partially open sunroof
•   2x attach at rear
– Partially close sunroof
