Adjust glass cover - L69 (Sliding Roof)

Make

Vauxhall

Model

Astra H

Section

Sliding Roof › Repair Instructions › Adjust glass cover - L69

Body EquipmentAdjust glass cover - L69

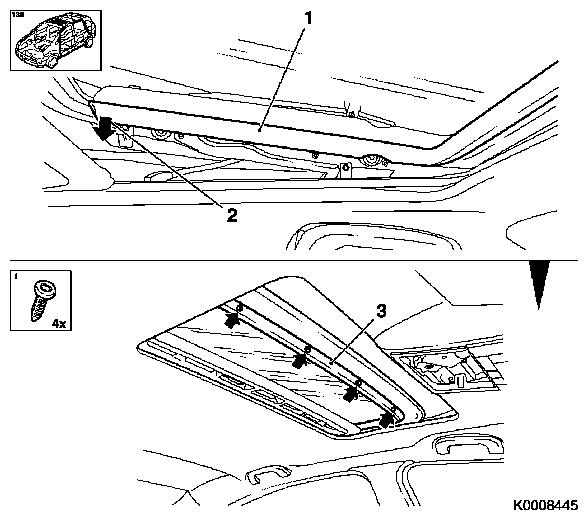

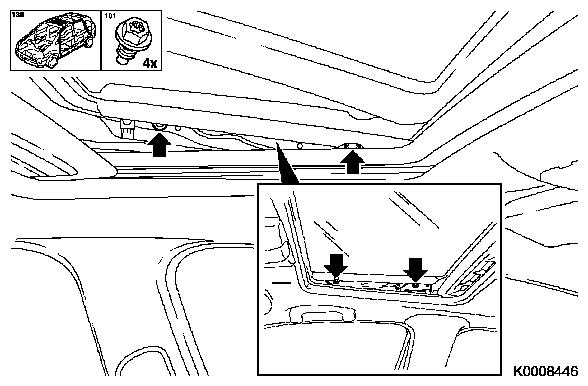

Adjust glass cover – L69   Remove 1.   Remove glass cover panelling (1) •   Unscrew 4x bolt (3) – Partially open sunroof •   2x detach at rear (2) – Partially close sunroof   Install 2.   Adjust glass cover •   Loosen 4x bolts (arrow) •   Align glass cover •   Tighten 4x bolt 3.   Function check •   Adjust glass cover as necessary   Install 4.   Install glass cover panelling •   Tighten 4x bolt – Partially open sunroof •   2x attach at rear – Partially close sunroof
