Replace border weatherstrip (Sliding Roof)

Make

Vauxhall

Model

Astra H

Section

Sliding Roof › Repair Instructions › Replace border weatherstrip

Body EquipmentReplace border weatherstrip

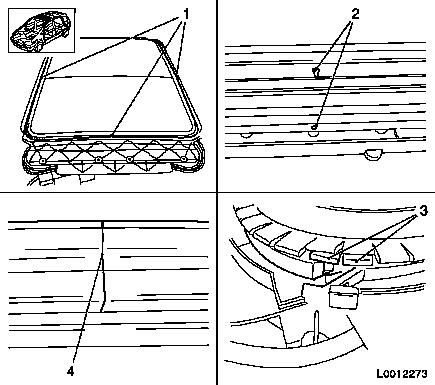

Replace border weatherstrip   Remove 1.   Remove sunroof 2.   Detach rubber seal •   Remove rubber seals from guide   Install 3.   Install rubber seal (1) Note:   Place rubber seal with cinematic sunroof in front area on markings (2) •   Insert rubber seal into guide Note:   Cut off the rubber at the lower area of the opening of the cinematic (3) •   Cut off extra rubber seal and glue end to abutting seal (4) (super glue) 4.   Install sunroof
