Astra H

Replace glass cover panel - L69

  Remove

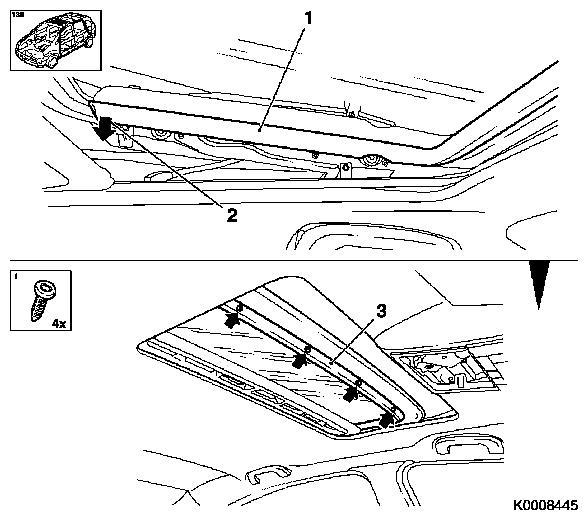

Object Number: 2405366 Size: DEFAULT

1.   Remove glass cover panelling (1)
•   Unscrew 4x bolt (3)
– Partially open sunroof
•   2x detach at rear (2)
– Partially close sunroof

  Install

2.   Install glass cover panelling
•   2x attach at rear
•   Tighten 4x bolt
– Partially open sunroof
