Replace border weatherstrip - L48
Remove
1. |
Detach moulded headlining
|
2. |

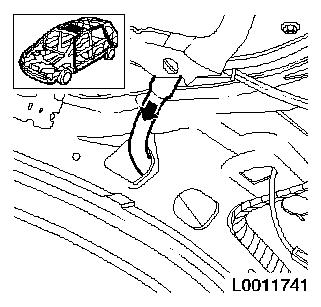

Detach front water drain hose actuation unit
|
|
|
3. |
Detach rear water drain hose actuation unit
|
|
|
4. |
Separate front wiring harness actuation unit
• |
Disconnect 2x wiring harness plug
|
|
|
5. |
Release actuation unit
|
6. |
Remove actuation unit
Note: 2nd mechanic
required.
|
|
7. |
Detach rubber seal
• |
Remove rubber seals from guide
|
|
Install
|
8. |

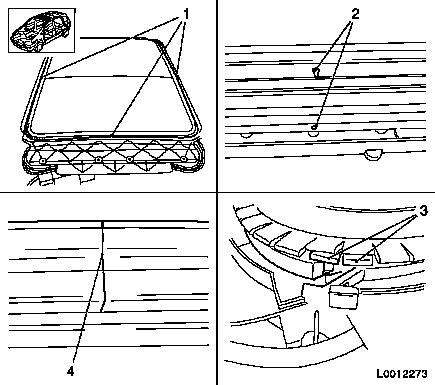

Install rubber seal (1)
Note: Place rubber seal
with cinematic sunroof in front area on markings (2)
• |
Insert rubber seal into guide
Note: Cut off the
rubber at the lower area of the opening of the cinematic (3)
|
• |
Cut off extra rubber seal and glue end to abutting seal (4)
(super glue)
|
|
|
9. |
Insert actuation unit
Note: 2nd mechanic
required.
|
10. |
Install actuation unit
|
11. |
Connect front wiring harness actuation unit
• |
Connect 2x wiring harness plugs
|
|
12. |
Attach rear water drain hose actuation unit
|
13. |
Attach front water drain hose actuation unit
|
14. |
Install moulded headlining
|
|
