Astra J

Radiator Upper Bracket Replacement

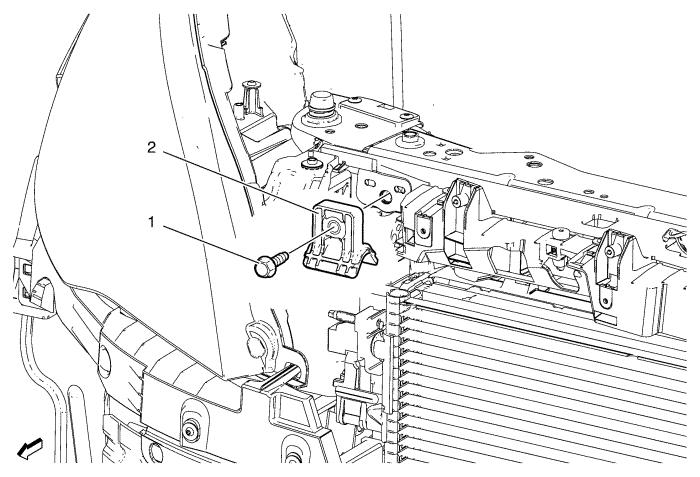

2191644




Callout
Component Name

Preliminary Procedure

Remove the fron bumper fascia. Refer to Front Bumper Fascia Replacement .

1
Radiator Upper Mount Bracket Bolt

Caution: Refer to Fastener Caution .

Tighten
22 N·m (16 lb ft)

2
Radiator Upper Bracket
