Turbocharger Coolant Feed Pipe Replacement - 1.6L LLU (Engine Cooling)

Make

Vauxhall

Model

Astra J

Section

Engine Cooling › Repair Instructions › Turbocharger Coolant Feed Pipe Replacement - 1.6L LLU

EngineTurbocharger Coolant Feed Pipe Replacement - 1.6L LLU

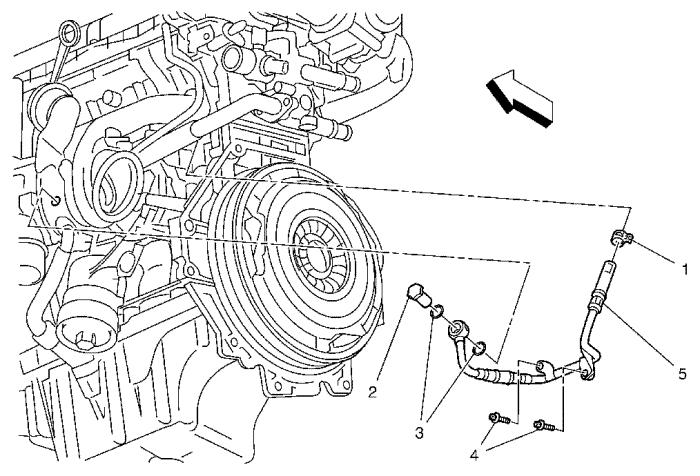

Turbocharger Coolant Feed Pipe Replacement (1.6L LLU) Callout Component Name Preliminary Procedures 1. Drain the cooling system. Refer to . Cooling System Draining and Filling 2. Remove the catalytic converter. Refer to . Catalytic Converter Replacement 3. Remove the exhaust manifold heat shield. Refer to . Exhaust Manifold Heat Shield Replacement 1 Turbocharger Coolant Feed Pipe Fastener 2 Turbocharger Coolant Feed Pipe Fastener Caution: Refer to Fastener Caution . Tighten 35 N·m (26 lb ft) 3 Turbocharger Coolant Feed Pipe O-Ring Seals (Qty: 2) Tip Install 2 NEW O-ring seals. 4 Turbocharger Coolant Feed Pipe Fastener (Qty: 2) Tighten 8 N·m (71 lb in) 5 Turbocharger Coolant Feed Pipe
