Auxiliary Water Pump Replacement - 1.3L Diesel LSF (Engine Cooling)

Make
Vauxhall
Model
Astra J
Section
Engine Cooling › Repair Instructions › Auxiliary Water Pump Replacement - 1.3L Diesel LSF
EngineAuxiliary Water Pump Replacement - 1.3L Diesel LSF

Auxiliary Water Pump Replacement - 1.3L Diesel LSF

Removal Procedure

  1. Remove the engine control module. Refer to Engine Control Module Replacement .
  2. Remove the battery tray. Refer to Battery Tray Replacement .

    3. 2512717


  3. Unclip the 2 alternator and starter wiring harness clips (2) from the auxiliary water pump bracket (1).
  4. Hang the alternator and starter wiring harness aside.
  5. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  6. Drain the cooling system. Refer to Cooling System Draining and Filling .
  7. If equipped remove the engine shield. Refer to Engine Shield Replacement .
  8. If equipped remove the front compartment splash shield. Refer to Front Compartment Splash Shield Replacement .
  9. If equipped remove the front compartment insulator. Refer to Front Compartment Insulator Replacement .

    10. 2512718


  10. Disconnect the auxiliary water pump wiring harness plug (3) from the auxiliary water pump (6).
  11. Remove the heater outlet hose clamp (5) and the heater outlet hose (4).
  12. Remove the auxiliary water pump outlet hose clamp (1) and the auxiliary water pump outlet hose (2).

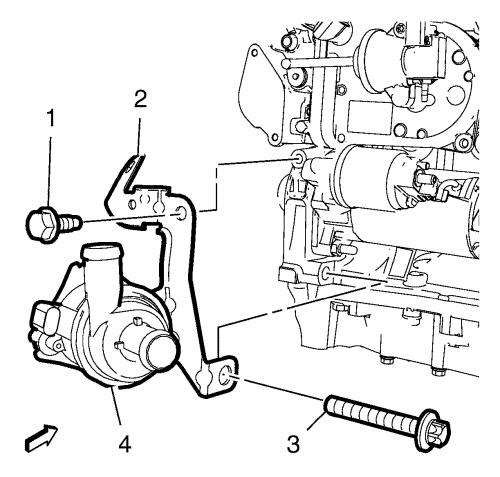

    13. 2512709


  13. Remove the auxiliary water pump bracket bolt (1) and the lower transmission bolt (3).
  14. Remove the auxiliary water pump bracket (2) along with the auxiliary water pump (4).

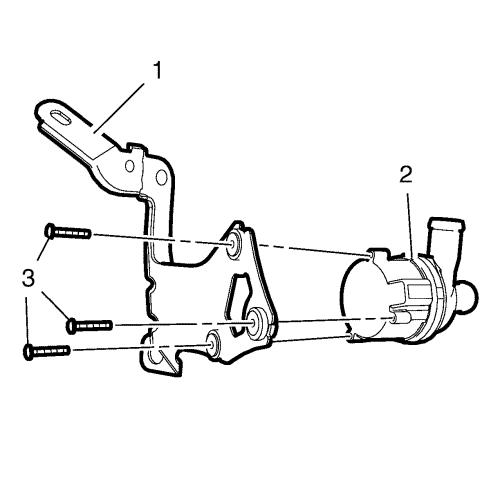

    15. 2512710


  15. Remove the 3 auxiliary water pump bolts (3).
  16. Remove the auxiliary water pump (2) from the auxiliary water pump bracket (1).

Installation Procedure


    2512710


  1. Install the auxiliary water pump (2) to the auxiliary water pump bracket (1).

    2. Caution: Refer to Fastener Caution in the Preface section.

  2. Install and tighten the 3 auxiliary water pump bolts (3).

    3. 2512709


  3. Install the auxiliary water pump bracket (2) along with the auxiliary water pump (4).
  4. Install the auxiliary water pump bracket bolt (1) and tighten to 23 N·m (17 lb ft) .
  5. Install the lower transmission bolt (3) and tighten to 60 N·m (44 lb ft) .

    6. 2512718


  6. Install the auxiliary water pump outlet hose (2) with the auxiliary water pump outlet hose clamp (1).
  7. Install the heater outlet hose (4) with the heater outlet hose clamp (5).
  8. Connect the auxiliary water pump wiring harness plug (3) to the auxiliary water pump (6).
  9. If equipped install the front compartment insulator. Refer to Front Compartment Insulator Replacement .
  10. If equipped install the front compartment splash shield. Refer to Front Compartment Splash Shield Replacement .
  11. If equipped install the engine shield. Refer to Engine Shield Replacement .
  12. Lower the vehicle.

    13. 2512717


  13. Position the alternator and starter wiring harness.
  14. Clip the 2 alternator and starter wiring harness clips (2) into the auxiliary water pump bracket (1).
  15. Install the battery tray. Refer to Battery Tray Replacement .
  16. Install the engine control module. Refer to Engine Control Module Replacement .
  17. Fill the cooling system. Refer to Cooling System Draining and Filling .
