Water Outlet Replacement - 1.4L LDD (Engine Cooling)

Make

Vauxhall

Model

Astra J

Section

Engine Cooling › Repair Instructions › Water Outlet Replacement - 1.4L LDD

EngineWater Outlet Replacement - 1.4L LDD

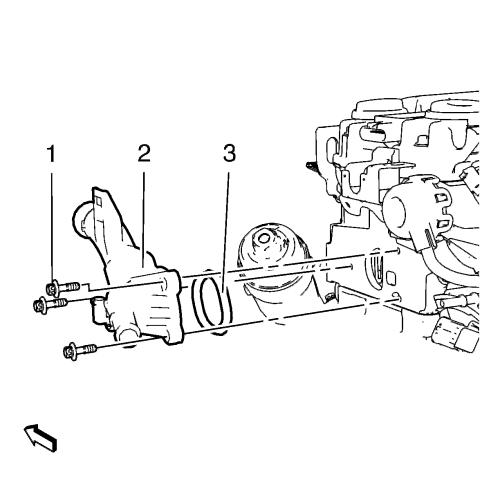

Water Outlet Replacement (1.4L LDD) Removal Procedure 1. Open the hood. 2. Drain coolant fluid. Refer to Cooling System Draining and Filling . 3. Remove the engine coolant air bleed hose from the water outlet. Refer to Engine Coolant Air Bleed Hose Replacement . 4. Remove the heater inlet hose from the water outlet. Refer to Heater Inlet Hose Replacement . 5. Remove the radiator inlet hose from the water outlet. Refer to Radiator Inlet Hose Replacement . 6. Disconnect the engine coolant temperature sensor (water outlet) wiring harness plug.            7. Remove the 3 water outlet bolts (1). 8. Remove the water outlet (2) and the water outlet seal ring (3). Installation Procedure 1. Clean the sealing surfaces.            2. Install the water outlet (2) and a NEW water outlet seal ring (3). Caution: Refer to Fastener Caution . 3. Install the 3 water outlet bolts (1) and tighten to 8 N·m (71 lb in) . 4. Connect the engine coolant temperature sensor (water outlet) wiring harness plug. 5. Install the radiator inlet hose to the water outlet. Refer to Radiator Inlet Hose Replacement . 6. Install the heater inlet hose to the water outlet. Refer to Heater Inlet Hose Replacement . 7. Install the engine coolant air bleed hose to the water outlet. Refer to Engine Coolant Air Bleed Hose Replacement . 8. Fill up coolant fluid. Refer to Cooling System Draining and Filling . 9. Close the hood.
