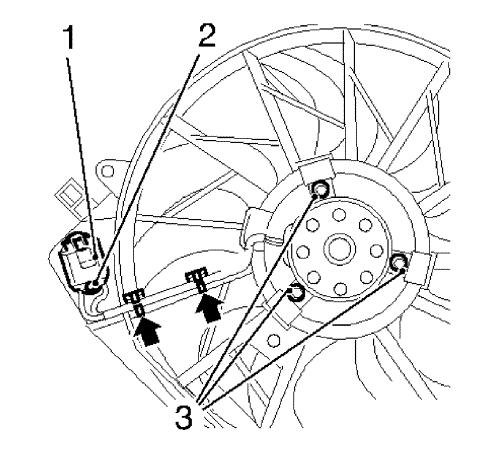

Engine Coolant Fan Replacement (1.3L Diesel LSF) Removal Procedure Warning: With a pressurized cooling system, the coolant temperature in the radiator can be considerably higher than the boiling point of the solution at atmospheric pressure. Removal of the surge tank cap, while the cooling system is hot and under high pressure, causes the solution to boil instantaneously with explosive force. This will cause the solution to spew out over the engine, the fenders, and the person removing the cap. Serious bodily injury may result. 1. Open the hood. 2. Remove the engine coolant fan shroud. Refer to Engine Coolant Fan Shroud Replacement .            3. Remove the engine coolant fan resistor (1) by unclipping the retainer clip (2). 4. Unclip the engine coolant fan to engine coolant fan resistor wiring harness (arrows). 5. Remove the 3 engine coolant fan motor bolts (3) from the engine coolant fan. 6. Remove the engine coolant fan. Installation Procedure            1. Install the engine coolant fan. Caution: Refer to Fastener Caution . 2. Install the 3 engine coolant fan motor bolts (3) to the engine coolant fan and tighten to 4 N·m (35 lb in) . 3. Clip in the engine coolant fan to the engine coolant fan resistor wiring harness (arrows). 4. Install the engine coolant fan resistor (1) by clipping the retainer clip (2). 5. Install the engine coolant fan shroud. Refer to Engine Coolant Fan Shroud Replacement . 6. Close the hood.
