Water Outlet Replacement - 1.4L LUH and LUJ (Engine Cooling)

Make

Vauxhall

Model

Astra J

Section

Engine Cooling › Repair Instructions › Water Outlet Replacement - 1.4L LUH and LUJ

EngineWater Outlet Replacement - 1.4L LUH and LUJ

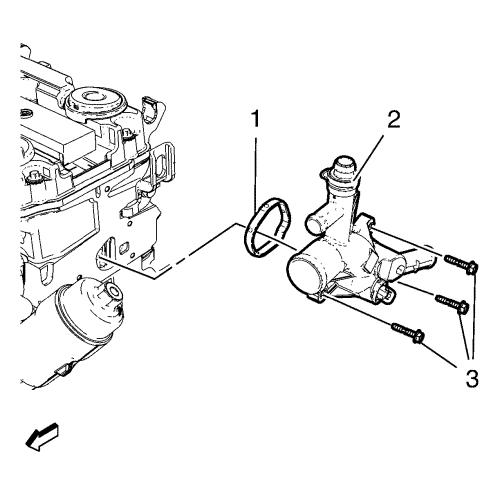

Water Outlet Replacement (1.4L LUH and LUJ) Removal Procedure 1. Drain the cooling system. Refer to Cooling System Draining and Filling . 2. Remove the charge air cooler outlet air hose from the throttle body. Refer to Charge Air Cooler Outlet Air Hose Replacement . 3. Remove the engine coolant air bleed hose from the water outlet. Refer to Engine Coolant Air Bleed Hose Replacement . 4. Remove the heater inlet hose from the water outlet. Refer to Heater Inlet Hose Replacement . 5. Remove the radiator inlet hose from the water outlet. Refer to Radiator Inlet Hose Replacement . 6. Remove the engine oil cooler inlet hose from the water outlet. Refer to Engine Oil Cooler Inlet Hose Replacement . 7. Disconnect the engine coolant temperature sensor (water outlet) wiring harness connector.            8. Remove the 3 water outlet bolts (3). 9. Remove the water outlet (2) and the water outlet seal ring (1). Installation Procedure 1. Clean the sealing surfaces.            2. Install the water outlet (2) and a NEW water outlet seal ring (1). Caution: Refer to Fastener Caution . 3. Install the 3 water outlet bolts (3) and tighten to 8 N·m (71 lb in) . 4. Connect the engine coolant temperature sensor (water outlet) wiring harness connector. 5. Install the engine oil cooler inlet hose to the water outlet. Refer to Engine Oil Cooler Inlet Hose Replacement . 6. Install the radiator inlet hose to the water outlet. Refer to Radiator Inlet Hose Replacement . 7. Install the heater inlet hose to the water outlet. Refer to Heater Inlet Hose Replacement . 8. Install the engine coolant air bleed hose to the water outlet. Refer to Engine Coolant Air Bleed Hose Replacement . 9. Install the charge air cooler outlet air hose to the throttle body. Refer to Charge Air Cooler Outlet Air Hose Replacement . 10. Fill the cooling system. Refer to Cooling System Draining and Filling .
