Battery Positive and Negative Cable Replacement - Petrol > < Battery Negative Cable Disconnection and Connection - without Start/Stop System

Astra J

Battery Negative Cable Replacement (without Start/Stop System)

Removal Procedure

1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .

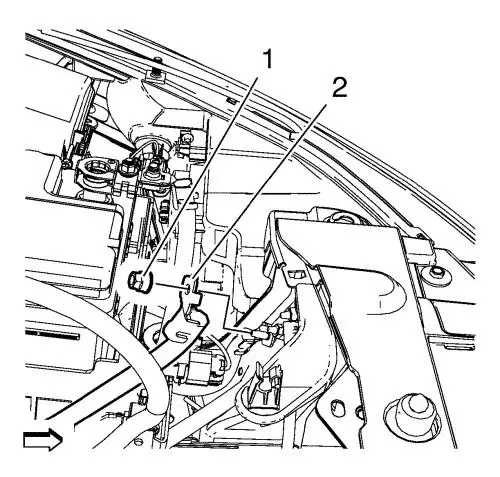

           2027762



2. Remove the battery ground cable nut (1).
3. Remove the battery negative cable (2).

           2027817



4. Disconnect the wiring harness current sensor plug (4).
5. Remove the current sensor (5) from the battery tray.
6. Remove battery ground cable from the battery negative cable nut (2).
7. Remove the ground cable (3).
8. Remove the battery negative cable (1).

           2027819



9. Remove the current sensor (2) from the battery negative cable (1).

Installation Procedure


           2027819



1. Install the current sensor (2) to the battery negative cable (1).

           2027817



2. Install the battery negative cable (1).
3. Install the ground cable (3).

Caution: Refer to Fastener Caution .
4. Install the battery ground cable to the battery negative cable nut (2) and tighten to 9 N·m (80 lb in) .
5. Install the current sensor (5) at the battery tray.
6. Connect the wiring harness current sensor plug (4).

           2027762



7. Install the battery negative cable (2).
8. Install the battery ground cable nut (1) and tighten to 9 N·m (80 lb in) .
9. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
