Astra J
Engine
Engine mechanics - 1.3L Diesel / Repair Instructions
Cylinder Head Removal
Cylinder Head Removal
1.

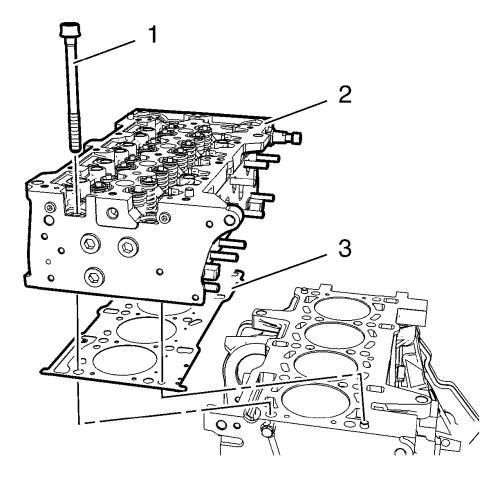

Loosen the 10 cylinder head bolts in sequence as shown.
2.
Remove the 10 cylinder head bolts (1).
3.
Remove the cylinder head (2).
4.
Remove the cylinder head gasket (3).
