Oil Pan Removal
Special Tools
EN-37228 Separation Tool
For equivalent regional tools, refer to
Special Tools .
|
Note: For vehicles
with air conditioning
|
| 1. |

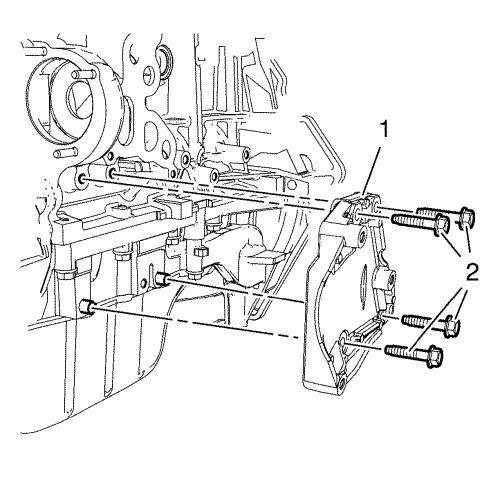

Remove the 4 air conditioning
compressor bracket bolts (2). |
| 2. |
Remove the air conditioning
compressor bracket (1). |
| 3. |

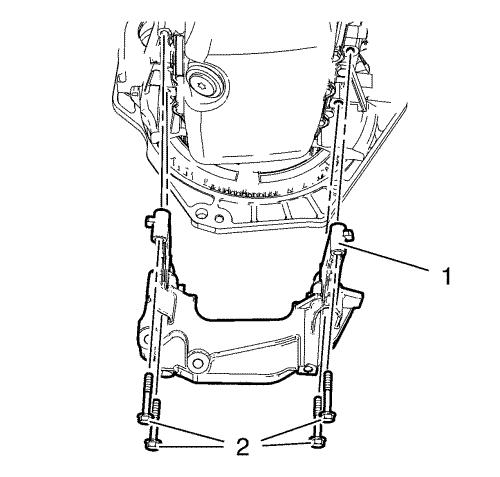

Remove the 4 transmission
support brace bolts (2). |
| 4. |
Remove the transmission
support brace (1). |
| 5. |

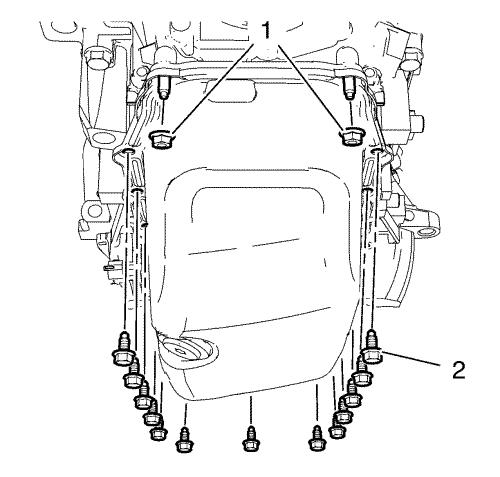

Remove the 2 oil pan nuts
(1). |
| 6. |
Remove the 13 oil pan bolts
(2). |
| 7. |
Loosen carefully the oil pan
(2) from the lower cylinder block with the EN-37228
separation tool (1). |

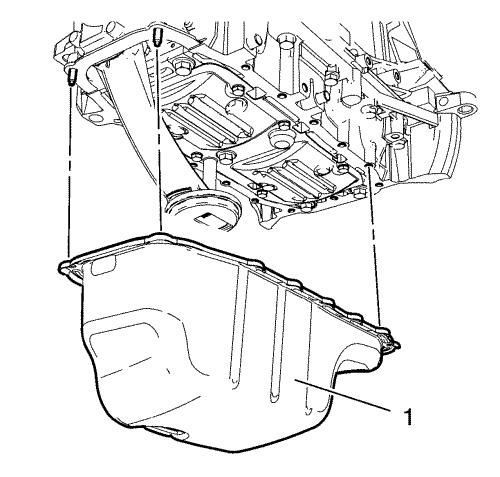

| 8. |
Remove the oil pan (1).
|
|
