Clutch Master Cylinder Replacement (Right Hand Drive)
Removal Procedure
| 1. |
Place basin underneath.
|
| 2. |
Extract as much brake fluid
out of brake fluid reservoir as possible. |
| 3. |
Remove clutch master cylinder
reservoir hose (1) from clutch master cylinder. |
| 4. |
Open retaining clip
(arrow). |
| 5. |
Disconnect clutch actuator
cylinder front pipe (1) from clutch master cylinder. |
| 6. |
Remove clutch pedal position
sensor bolt (1). |
| 7. |
Remove clutch pedal position
sensor. |
|
Note: Press 2 latches
(arrows) together.
|
| 8. |
Disconnect push rod retainer
(1) from clutch pedal. |
| 9. |

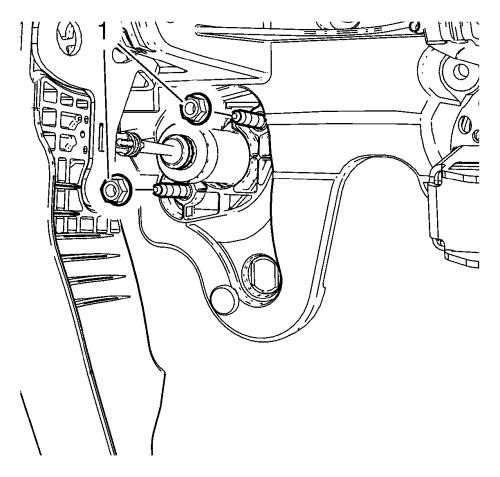

Remove 2 clutch master
cylinder nuts (1). |
| 10. |
Remove clutch master cylinder
(1). |
Installation Procedure
| 1. |
Install clutch master cylinder
(1). |
| 2. |
Install 2 clutch master
cylinder nuts (1) and tighten to 18 N·m (13 lb
ft) . |
|
Note: The retaining
clip (arrows) has to engage audibly.
|
| 3. |
Connect push rod retainer (1)
to clutch pedal. |
| 4. |
Install clutch pedal
sensor. |
| 5. |
Install clutch pedal position
sensor bolt (1). |
| 6. |
Connect clutch actuator
cylinder front pipe (1) to clutch master cylinder. |
| 7. |
Close retaining clip
(arrow). |
| 8. |
Install clutch master cylinder
reservoir hose (1) to clutch master cylinder. |
| 10. |
Learn clutch pedal position
sensor. |
|
