Clutch Master Cylinder Replacement - Left Hand Drive

Make

Vauxhall

Model

Astra J

Section

Clutch › Repair Instructions › Clutch Master Cylinder Replacement - Left Hand Drive

Transmission/TransaxleClutch Master Cylinder Replacement - Left Hand Drive

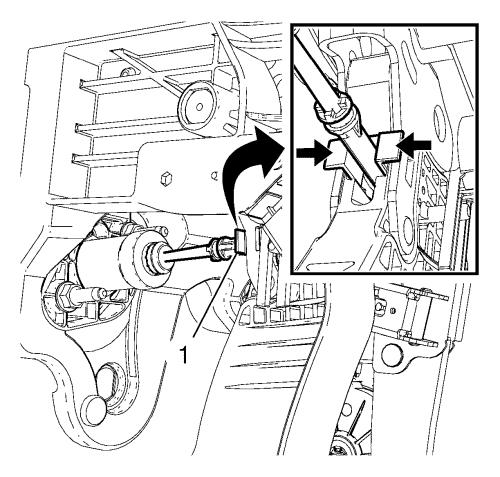

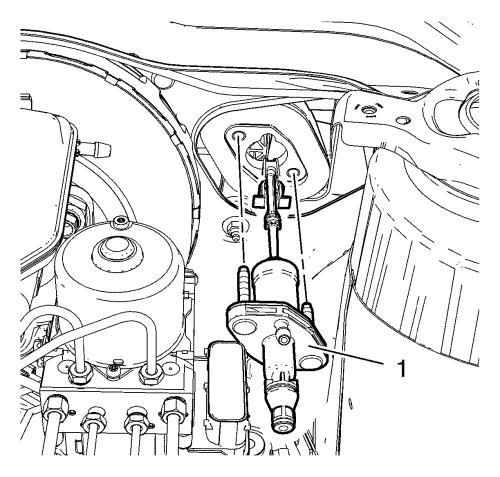

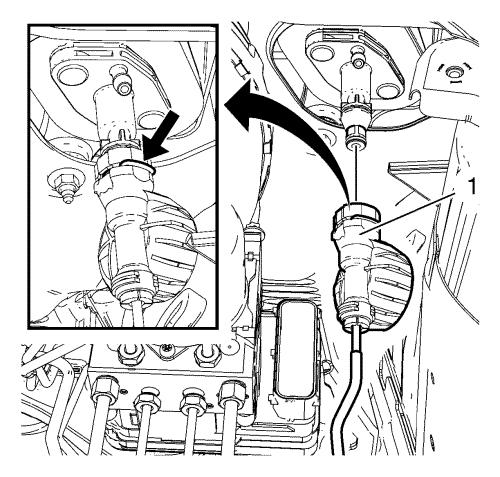

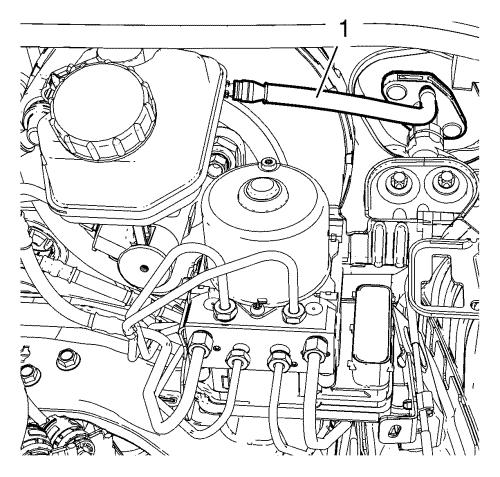

Clutch Master Cylinder Replacement (Left Hand Drive) Removal Procedure 1. Remove battery tray. Refer to Battery Tray Replacement .            2. Remove radiator surge tank clip (2). 3. Remove radiator surge tank (1) and lay aside. 4. Place basin underneath. 5. Extract as much brake fluid out of brake fluid reservoir as possible.            6. Remove clutch master cylinder reservoir hose (1) from clutch master cylinder.            7. Clip clutch actuator cylinder front (1) pipe out of 2 retainers (arrows).            8. Open retaining clip (arrow). 9. Disconnect clutch actuator cylinder front pipe (1) from clutch master cylinder.            Note:  Press 2 latches (arrows) together. 10. Disconnect push rod retainer (1) from clutch pedal.            11. Remove 2 clutch master cylinder nuts (1).            12. Remove clutch master cylinder (1). Installation Procedure            1. Install clutch master cylinder (1). Caution: Refer to Fastener Caution .            2. Install 2 clutch master cylinder nuts (1) and tighten to 18 N·m (13 lb ft) .            Note:  The retaining clip (arrows) has to engage audibly. 3. Connect push rod retainer (1) to clutch pedal.            4. Connect clutch actuator cylinder front pipe (1) to clutch master cylinder. 5. Close retaining clip (arrow).            6. Clip clutch actuator cylinder front pipe (1) into 2 retainers (arrows).            7. Install clutch master cylinder reservoir hose (1) to clutch master cylinder.            8. Install radiator surge tank (1). 9. Install radiator surge tank clip (2). 10. Bleed hydraulic clutch system. Refer to Hydraulic Clutch System Bleeding . 11. Install battery tray. Refer to Battery Tray Replacement .
