Clutch Actuator Cylinder Replacement - M32

Make

Vauxhall

Model

Astra J

Section

Clutch › Repair Instructions › Clutch Actuator Cylinder Replacement - M32

Transmission/TransaxleClutch Actuator Cylinder Replacement - M32

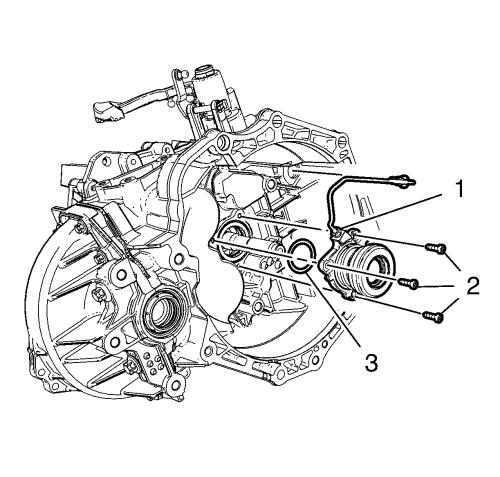

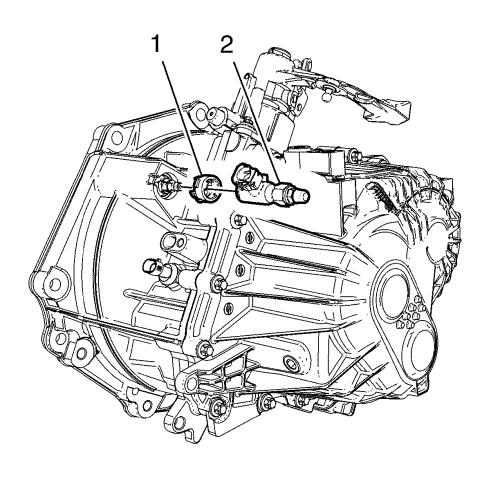

Clutch Actuator Cylinder Replacement (M32) Removal Procedure 1. Remove transmission. Refer to Transmission Replacement .            Warning: When adding fluid to the brake fluid reservoir or to the clutch fluid reservoir, use only DOT-4+ brake fluid from a clean, sealed container. This polyglycol brake fluid is hygroscopic and absorbs moisture. Do not use fluid from an open container that may be contaminated with water. Brake fluid must not be contaminated with mineral oil. Improper or contaminated fluid could result in system failure, loss of vehicle control, and possible injury. Complaints because of, or defects caused by contaminated brake fluid will not be accepted by GM warranty. 2. Remove clutch actuator cylinder pipe elbow (2) and clutch actuator cylinder pipe sleeve (1).            3. Remove 3 clutch actuator cylinder bolts (3). 4. Remove clutch actuator cylinder (2). 5. Remove and DISCARD clutch actuator cylinder seal (4). 6. Remove and DISCARD the clutch actuator cylinder pipe seal (1) Installation Procedure 1. Clean 3 clutch actuator cylinder threads in clutch housing.            2. Install the NEW clutch actuator cylinder pipe seal (1). 3. Install NEW clutch actuator cylinder seal (4). 4. Install clutch actuator cylinder (2). Caution: Refer to Fastener Caution . 5. Install 3 NEW clutch actuator cylinder bolts (3) and tighten to 6 N·m (53 lb in) .            6. Install clutch actuator cylinder pipe sleeve (1) and clutch actuator cylinder pipe elbow (2). 7. Install transmission. Refer to Transmission Replacement .
