Transmission/TransaxleClutch Actuator Cylinder Pipe Replacement - F17-5
Clutch Actuator Cylinder Pipe Replacement (F17-5)Removal Procedure
|
| 1. | Remove transmission. Refer to Transmission Replacement . |
| 2. | Remove clutch actuator cylinder. Refer to Clutch Actuator Cylinder Replacement . |

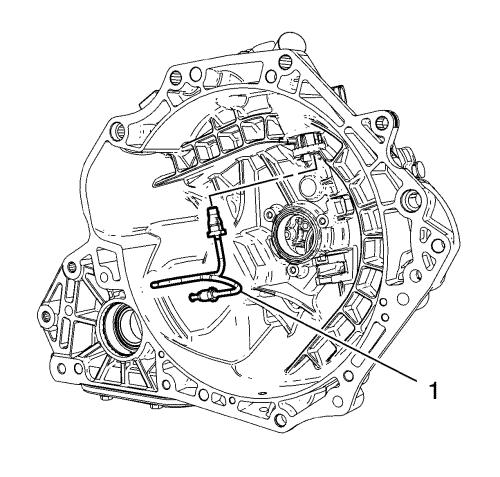

| 3. | Clip clutch actuator cylinder pipe (1) out of sleeve. |
| 4. | Remove clutch actuator cylinder pipe. |
Installation Procedure
| 1. | Clip clutch actuator cylinder pipe (1) into sleeve. |
| 2. | Install clutch actuator cylinder. Refer to Clutch Actuator Cylinder Replacement . |
| 3. | Install transmission. Refer to Transmission Replacement . |
