Power transmissionChecking gear oil
| Special tools and workshop equipment required |
|
|
|
| t

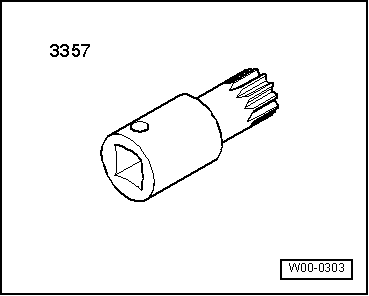

| Torque wrench -V.A.G 1331- |
|
|
|
| –

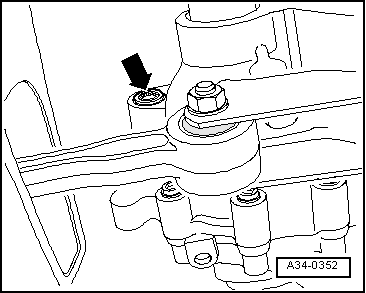

| To check gear oil, remove oil plug -arrow-. |
| Oil level is correct when gearbox is filled to lower edge of filler hole. |
| –
| Tighten bolt -arrow- to specified torque → Fig.. |
| When filling with oil, note the following: |
| –
| Remove oil plug -arrow-. |
| –
| Fill with gear oil to lower edge of filler hole. |
| –
| Start engine, engage gear and allow gearbox to turn for approx. 2 minutes. |
| –
| Stop engine and remove plug -arrow-. |
| –
| Top up with gear oil to lower edge of filler hole. |
| –
| Tighten bolt -arrow- to specified torque → Fig.. |
|
|
|

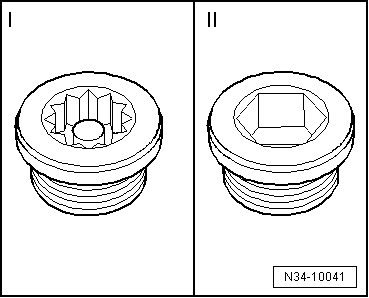

| Various versions of oil filler and drain plugs |
| I - Oil filler or oil drain plug with multi-point socket head 25 Nm |
| II - Oil filler or oil drain plug with hexagon socket head 30 Nm |
|
|
|
