7-speed dual clutch gearbox 0AM (Capacities): Technical data

Make

Volkswagen

Model

Polo Mk5

Section

7-speed dual clutch gearbox 0AM › Technical data › Capacities

Power transmissionCapacities

Capacities

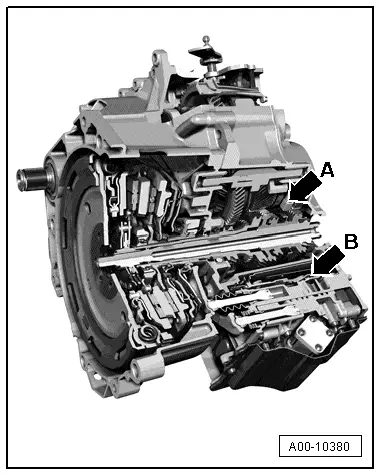

The 7-speed dual clutch gearbox has two separate and different oil systems. One for the gear oil part -arrow A- and one for the hydraulic fluid part -arrow B-.

Capacities	Gear oil part
Initial filling	1.7 l
Change	No change necessary
Lubricant	Gear oil for dual clutch gearbox 0AM Part number → Electronic parts catalogue „ETKA“

Capacities	Hydraulic fluid part in mechatronic unit for dual clutch gearbox -J743-
Initial filling	1 l
Change	No change necessary
Lubricant	Hydraulic fluid Part number → Electronic parts catalogue „ETKA“

Further information in the part number designates the container size.   Caution Risk of damage to gearbox. t  Only the gear oil for the 7-speed dual clutch gearbox 0AM, which is available through the replacement parts system, may be used → Electronic parts catalogue „ETKA“. t  Other oils will lead to malfunctions or failure of the gearbox. t  It is not possible to check the fill level of the hydraulic fluid part of the mechatronic unit for dual clutch gearbox -J743-. Before installation/removal work, the breather of the mechatronic unit for dual clutch gearbox -J743- must be sealed so that no oil can escape. t  If any oil escapes from the hydraulic fluid part of the mechatronic unit for dual clutch gearbox -J743-, it is not possible to replenish it or check the level! t  If oil escapes from the gear oil part, it can only be rectified by changing the gear oil. It is not possible to check the fill level. t  If the level of oil/fluid is too high or too low in either of the parts, the function of the gearbox will be impaired.
