Power transmissionOverview - power transmission

Overview - power transmission

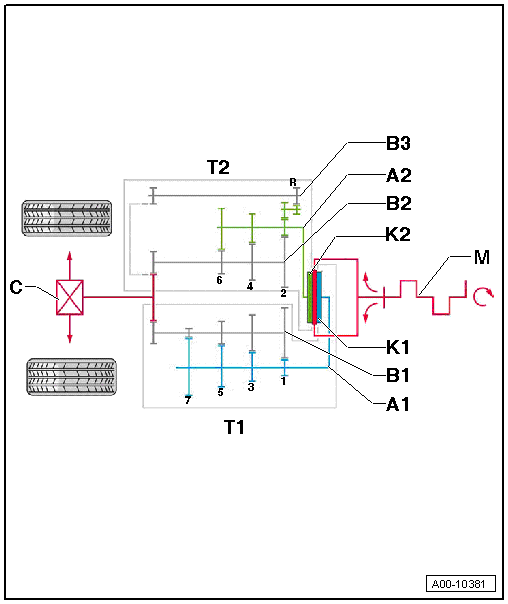

The 7-speed dual clutch gearbox 0AM is configured as a 5 shaft gearbox. There are two input shafts and three output shafts.

A1 -	Input shaft 1

A2 -	Input shaft 2

B1 -	Output shaft 1

B2 -	Output shaft 2

B3 -	Output shaft 3

C -	Front final drive

K1 -	Dual clutch 1

K2 -	Dual clutch 2

M -

Engine

T1 -	Sub-gearbox 1

q	with gears 1, 3, 5 and 7

T2 -	Sub-gearbox 2

q	with gears 2, 4, 6 and reverse gear R
