Running gearTest preparations
| Special tools and workshop equipment required |
|
|
|
| t

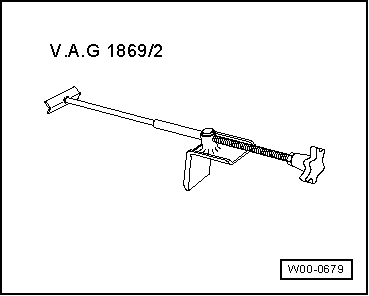

| Brake pedal depressor -V.A.G 1869/2- |
| The existing lateral runout of the wheel must be compensated for. Otherwise, the result of the measurement will be incorrect. |
| If runout compensation is not performed, it is not possible to adjust toe-in correctly! |
| Observe information provided by the manufacturer of the wheel alignment unit. |
| –
| Carry out wheel runout compensation. |
| –
| Apply brake pedal depressor -V.A.G 1869/2-. |
| –
| Use brake pedal depressor to depress brake pedal. |
|
|
|
01 Steering & suspension
