R32 4Motion V6-3.2L (CBRA) (2008)
Exhaust Pressure Regulator: Testing and Inspection
Exhaust Flap Valve 1 N321, Checking
Exhaust Flap Valve 1 N321, Checking
Special tools, testers and auxiliary items required
-
Multimeter.
-
Wiring diagram.
Test requirements
-
Fuse SB35 OK.
-
The Power Supply Relay (terminal 30, B+) J317 OK.
-
The parking brake engaged.
-
The battery voltage at least 12.5 V.
-
The selector lever of automatic transmission in position "P" or "N".
-
All electrical consumers switched off (radiator fan must NOT run during test).
-
A/C switched off.
-
The fuel tank at least 1/4 filled.
-
The ignition switched off.
Test procedure
-
Perform a preliminary check to verify the customers complaint. See: Powertrain Management/Computers and Control Systems/Testing and
Inspection/Scan Tool Testing and Procedures/Preliminary Check
Start diagnosis
-
Disconnect the Exhaust Flap Valve 1 N321 electrical harness connector.
Checking internal resistance
-

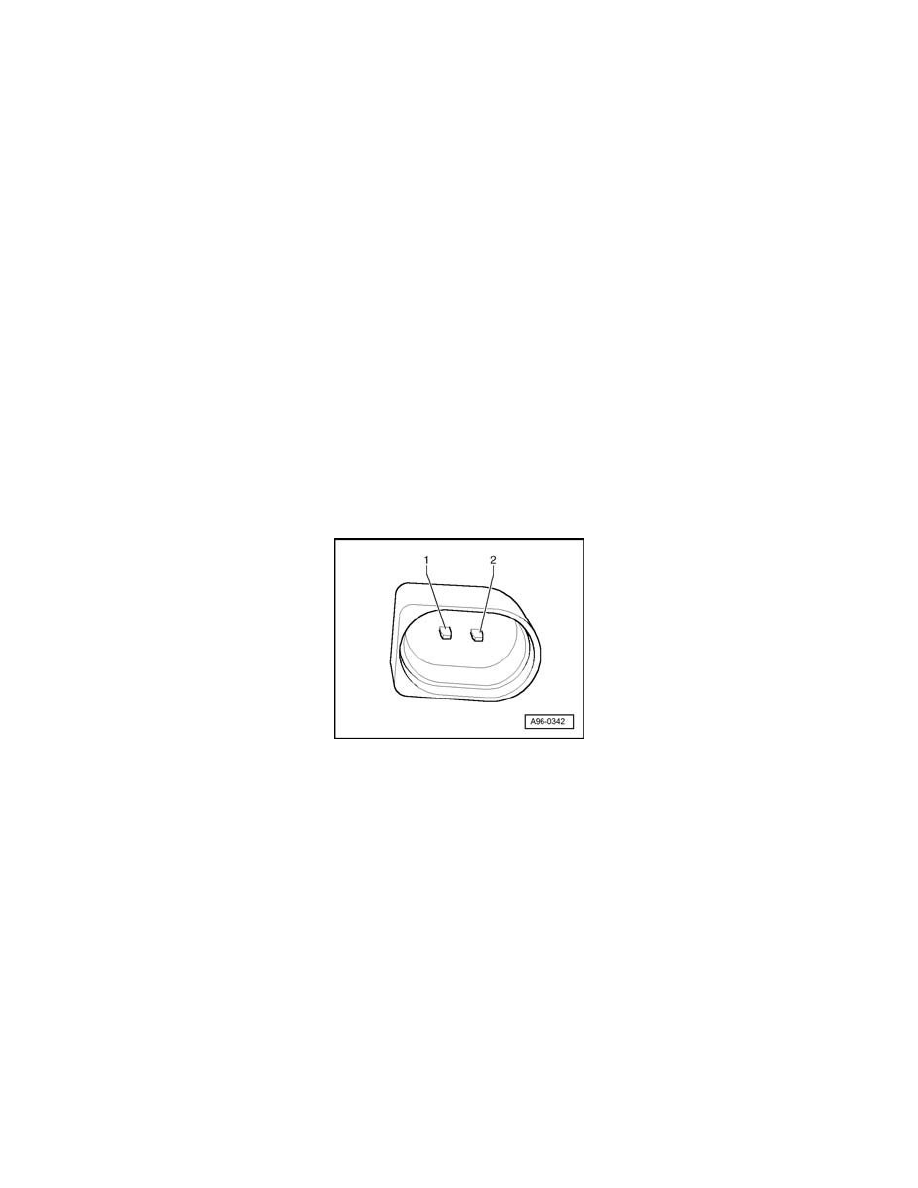

Using a Multimeter, check the Exhaust Flap Valve 1 N321 terminals 1 to 2 for resistance
Specified value: 450 to 1000 ohms.
If the specified value was not obtained:
-
Replace the Exhaust Flap Valve 1 N321. If the specified value was obtained:
Checking voltage
Crank the engine.
