Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001)01 · 145 electrical system diagnosis
01 · Diagnostics

Components and connectors

Make
Alfa Romeo
Model
145/146 Electrical System Diagnosis Manual, Volume 3
Year
1994–2001
Section
Airbag + Sidebag › Components and connectors
145 electrical system diagnosisComponents and connectors

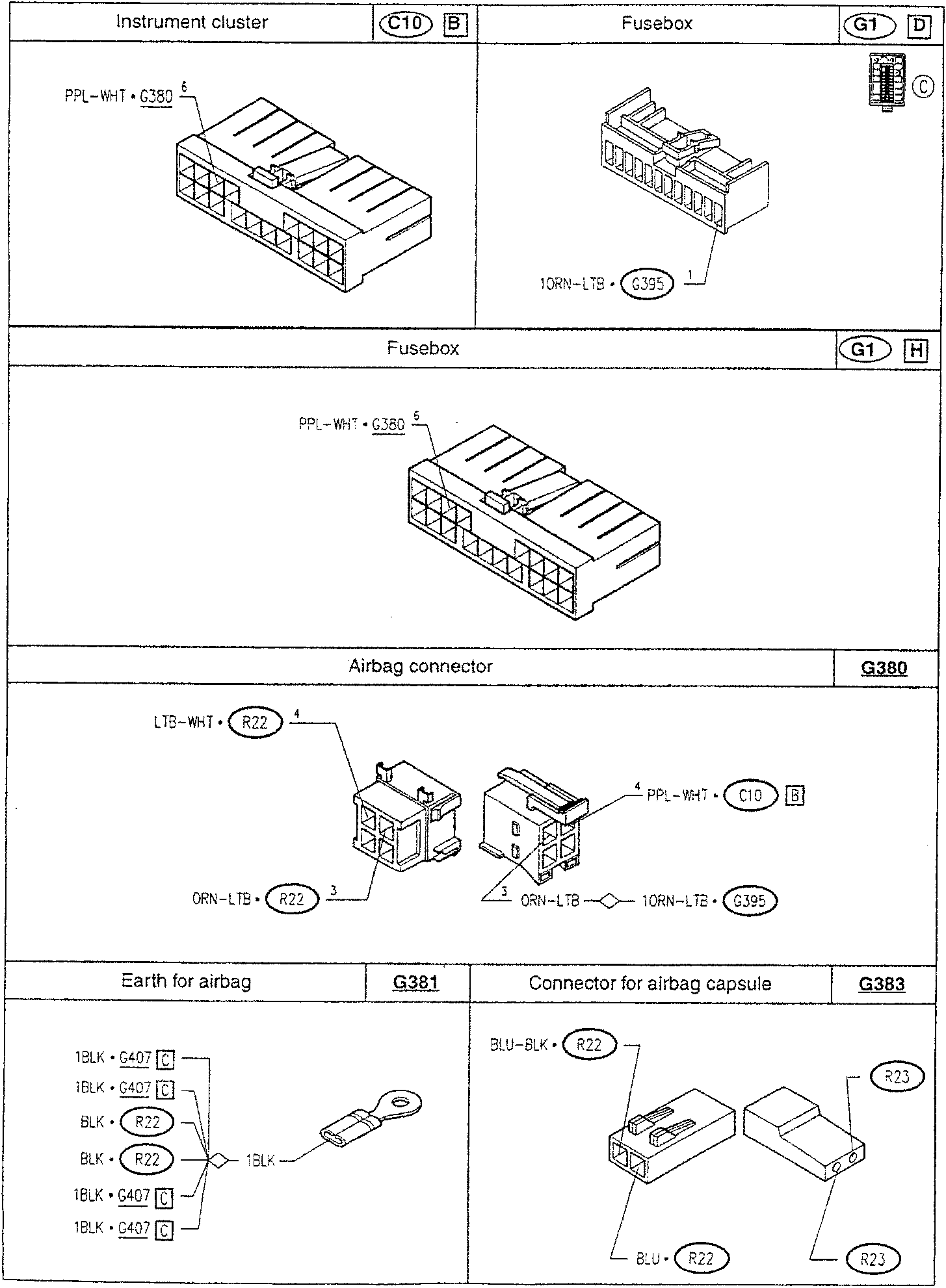

COMPONENTS AND CONNECTORS

F1 Instrument cluster C10 B Fusebox G1 D
Instrument cluster connector with wire labeled PPL-WHT • G380
10RN-LTB • G395
Fusebox connector with wire labeled 10RN-LTB • G395
G1 D
Fusebox G1 H
Fusebox connector with wire labeled PPL-WHT • G380
G1 H
Airbag connector G380
Airbag connector with wires labeled LTB-WHT • R22, ORN-LTB • R22, PPL-WHT • C10 B, and 10RN-LTB • G395
G380
Earth for airbag G381 Connector for airbag capsule G383
Earth for airbag connector with wires labeled 1BLK • G407 C, BLK • R22, and 1BLK • G407 C
G381
Connector for airbag capsule with wires labeled BLU-BLK • R22, BLU • R22, and R23
G383
