COMPONENTS AND CONNECTORS (cont.d)

Make

Alfa Romeo

Model

145/146 Electrical System Diagnosis Manual, Volume 3

Year

1994–2001

Section

Airbag + Sidebag › COMPONENTS AND CONNECTORS (cont.d)

145 electrical system diagnosisCOMPONENTS AND CONNECTORS (cont.d)

COMPONENTS AND CONNECTORS (cont.d)

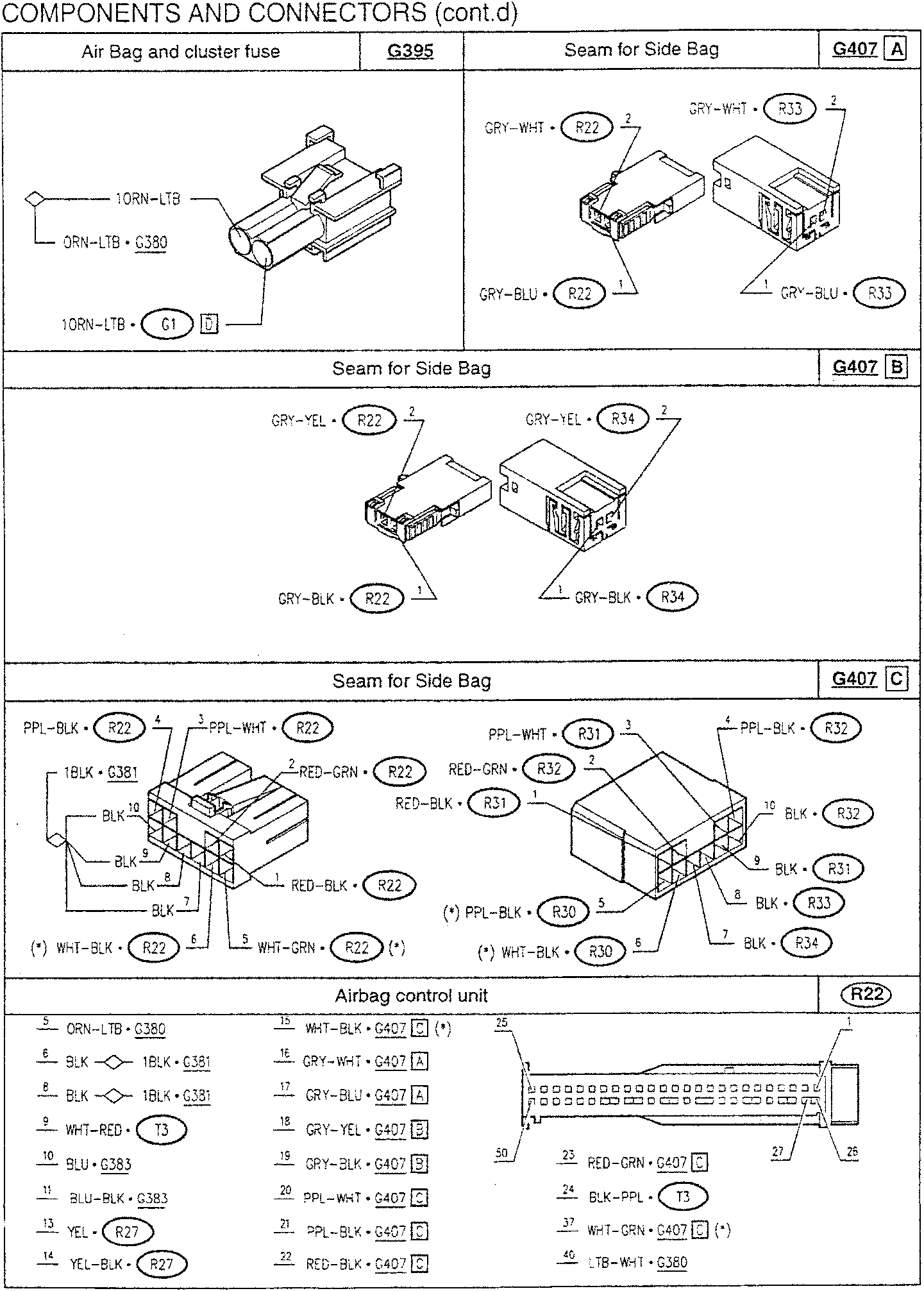

Air Bag and cluster fuse	G395	Seam for Side Bag	G407 A
	G395		G407 A
				10RN-LTB • G1 D	GRY-WHT • R22 2	GRY-WHT • R33 2

Seam for Side Bag	G407 B
	G407 B

Seam for Side Bag	G407 C
	G407 C

Airbag control unit	R22
	R22

(*) only present up to June '99
