COMPONENTS AND CONNECTORS (cont.d)

Make

Alfa Romeo

Model

145/146 Electrical System Diagnosis Manual, Volume 3

Year

1994–2001

Section

Headlamps › COMPONENTS AND CONNECTORS (cont.d)

145 electrical system diagnosisCOMPONENTS AND CONNECTORS (cont.d)

COMPONENTS AND CONNECTORS (cont.d)

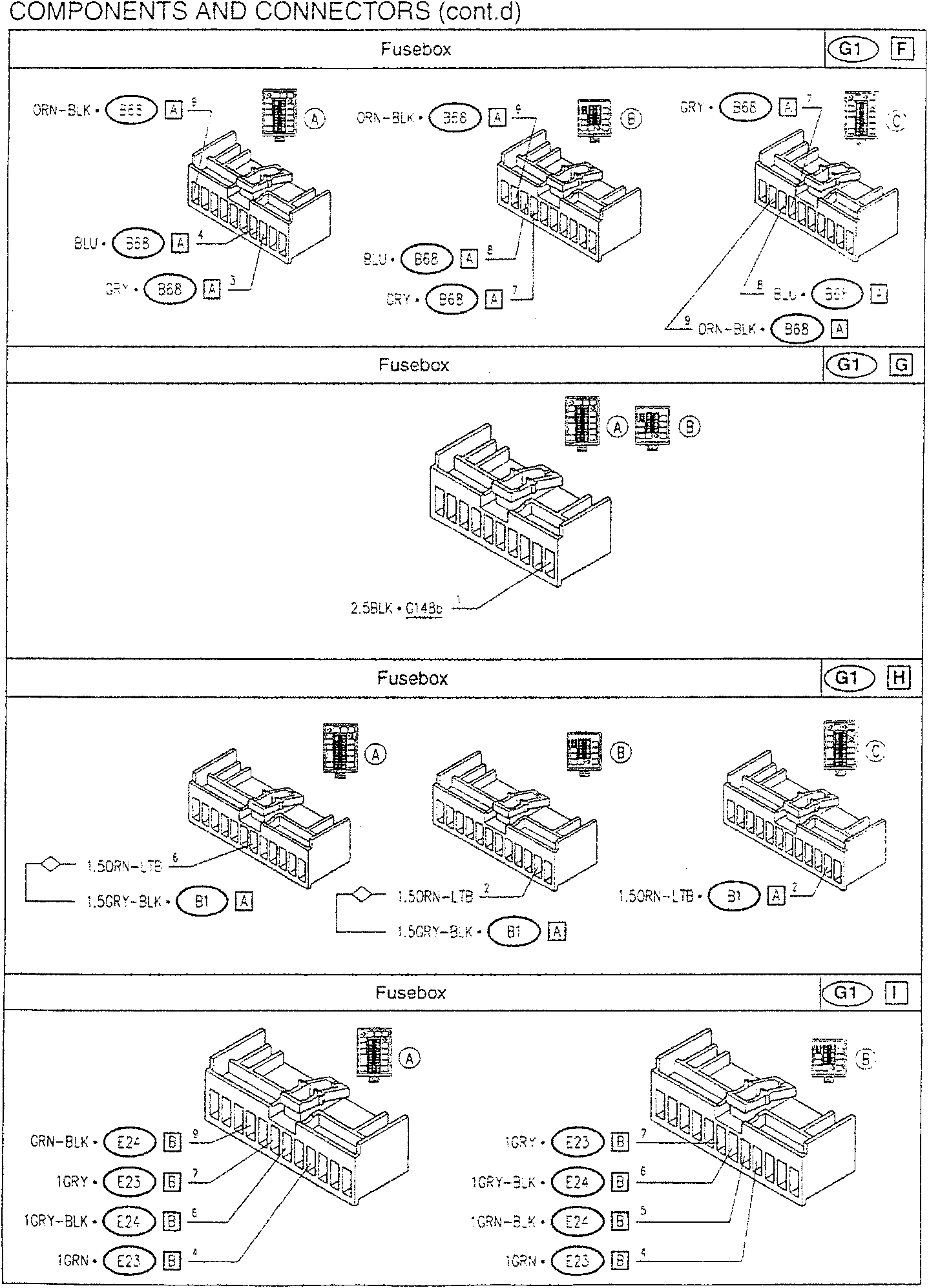

Fusebox	G1 F
ORN-BLK • 365 A 5	A
BLU • 368 A 4
GRY • 368 A 3
ORN-BLK • 368 A 6	B
BLU • B68 A 8
CRY • B68 A 7
GRY • B68 A 2	C
BLU • B68 A 9
ORN-BLK • B68 A

Fusebox	G1 G
2.5BLK • C14Bc 1	A B

Fusebox	G1 H
1.5ORN-LTB 6	A
1.5GRY-BLK • B1 A
1.5ORN-LTB 2	B
1.5GRY-BLK • B1 A
1.5ORN-LTB • B1 A 2	C

Fusebox	G1 I
GRN-BLK • E24 B 9	A
1GRY • E23 B 7
1CRY-BLK • E24 B 6
1GRN • E23 B 4
1GRY • E23 B 7	B
1CRY-BLK • E24 B 6
1GRN-BLK • E24 B 5
1GRN • E23 B 4
1GRY • E23 B 7	C
