145 electrical system diagnosisFaultfinding table

FAULTFINDING TABLE

Failure	Component to be checked
	F7	F8	F9	F10	E23	E24	149	150	B68	C10 (*)
Both low beam lamps						●	●
RH low beam lamp	●			●
LH low beam lamp		●			●
Both high beam lamps						●	●
RH high beam lamp		●		●
LH high beam lamp			●	●
High beam warning light			●						●

(*) WARNING: the high beam warning light of the instrument cluster C10 is replaceable, as it is a bulb and not a led.

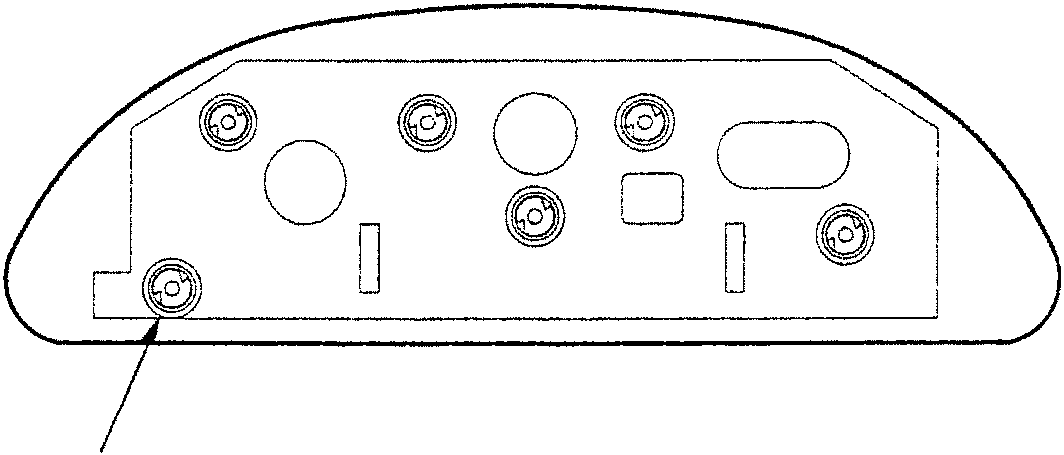

Up to M.Y. '98

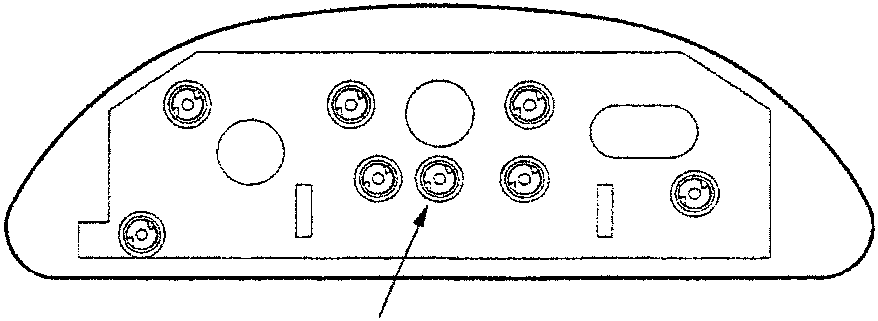

From M.Y. '99
