COMPONENTS AND CONNECTORS (cont.d)
- Make
- Alfa Romeo
- Model
- 145/146 Electrical System Diagnosis Manual, Volume 3
- Year
- 1994–2001
- Section
- Headlamps › COMPONENTS AND CONNECTORS (cont.d)
145 electrical system diagnosisCOMPONENTS AND CONNECTORS (cont.d)

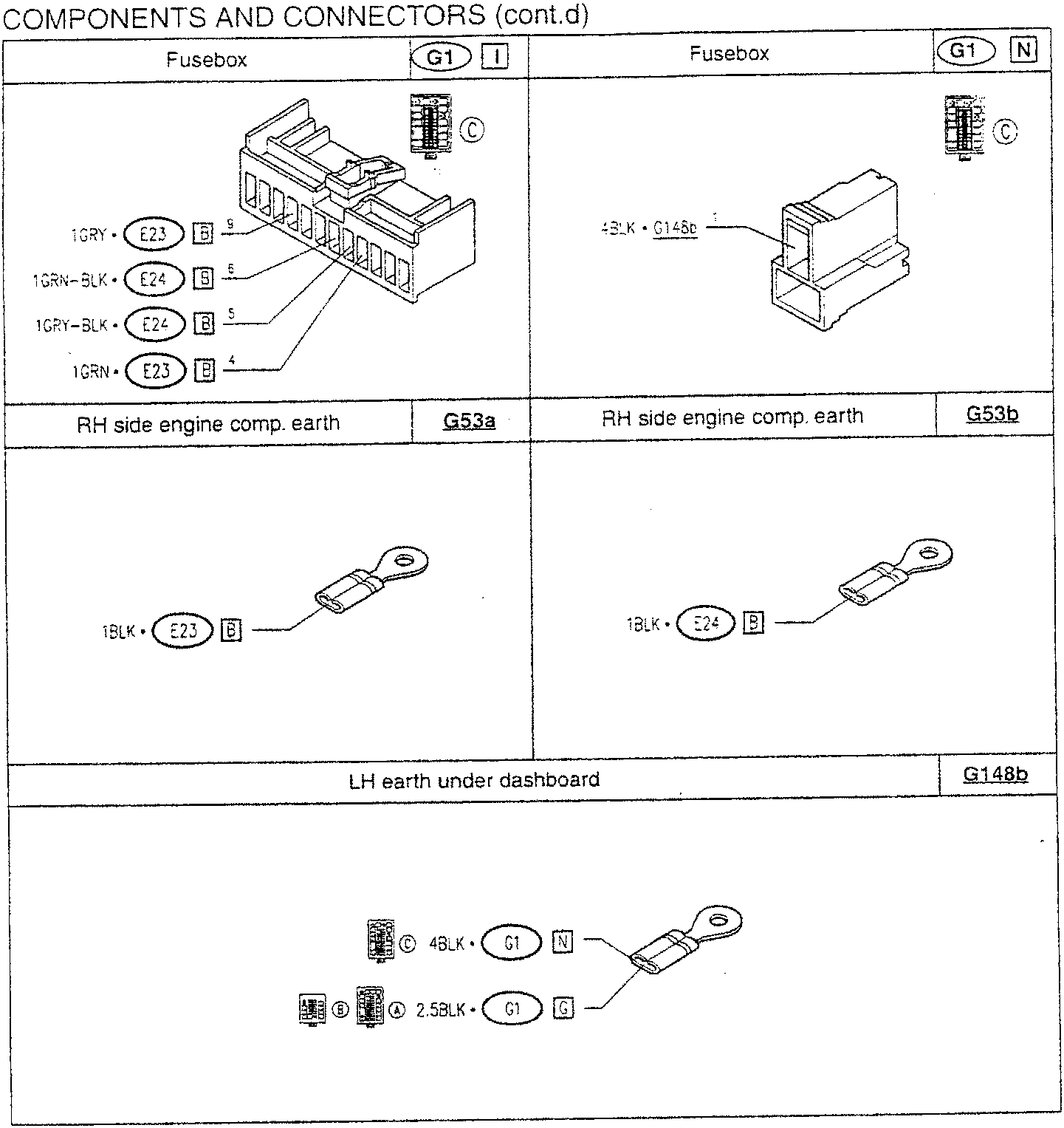

COMPONENTS AND CONNECTORS (cont.d)
| Fusebox | G1 I | Fusebox | G1 N |
|---|---|---|---|
| RH side engine comp. earth | G53a | RH side engine comp. earth | G53b |
| 1BLK • E23 B | 1BLK • E24 B | ||
| LH earth under dashboard | G148b | ||
