145 electrical system diagnosisCOMPONENTS AND CONNECTORS (cont.d)

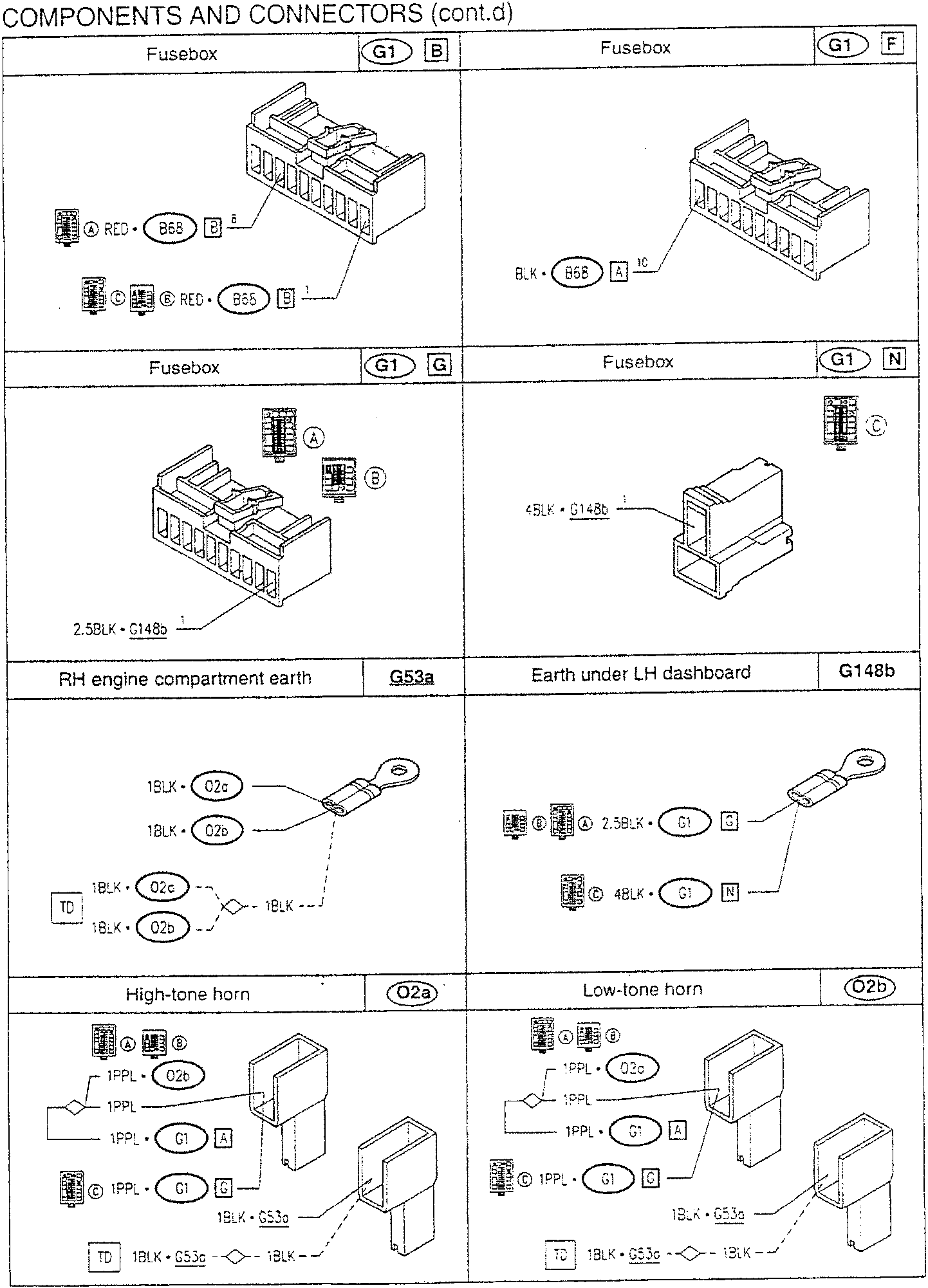

COMPONENTS AND CONNECTORS (cont.d)

Fusebox G1 B Fusebox G1 F
Fusebox with terminals A, B, C, D, and G1
BLK • G68 A 1C
Fusebox with terminal A and G1
RED • B68 B 1 RED • B68 B 1
Fusebox G1 G Fusebox G1 N
Fusebox with terminals A, B, and G1
2.5BLK • G148b 1
Fusebox with terminal C and G1
4BLK • G148b 1
2.5BLK • G148b 1 4BLK • G148b 1
RH engine compartment earth G53a Earth under LH dashboard G148b
RH engine compartment earth with terminals 02c, 02b, and TD
1BLK • O2c
Earth under LH dashboard with terminals G1, N, and 4BLK • G148b
2.5BLK • G1 G
1BLK • O2b 4BLK • G1 N
High-tone horn O2a Low-tone horn O2b
High-tone horn with terminals O2a, G1, and G53a
1PPL • O2b
Low-tone horn with terminals O2b, G1, and G53a
1PPL • O2c
1PPL • G1 A 1PPL • G1 A
High-tone horn with terminals O2a, G1, and G53a
1PPL • G1 G
Low-tone horn with terminals O2b, G1, and G53a
1PPL • G1 G
1BLK • G53a 1BLK • G53a
