Horns O2
- Make
- Alfa Romeo
- Model
- 145/146 Electrical System Diagnosis Manual, Volume 3
- Year
- 1994–2001
- Section
- Horns › Horns O2
145 electrical system diagnosisHorns O2
Horns O2

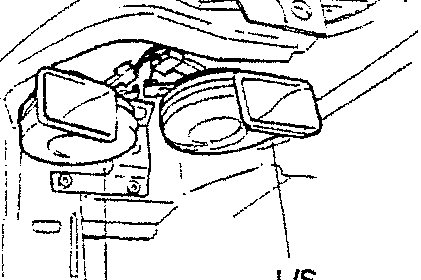

"R/D" low tone
"L/S" high tone
| SPECIFICATIONS | |
|---|---|
| Nominal voltage rating | 12V |
| Current absorbed | <10A (the pair) |
| Total horn sound level | 106 ÷ 118 dB a 2m |
| Sound level in band 1800 ÷ 3550 Hz | ≥ 105 dB a 2m |
| Horn sound level L-H | ≥ 108 dB a 2m |
| Fundamental frequency type H | 480 ÷ 530 Hz |
| Fundamental frequency type L | 380 ÷ 430 Hz |
