Location of earths › Ceiling lights
145 electrical system diagnosisCeiling lights · page 1 of 2

Ceiling lights – diagram from the 145 electrical system diagnosis chapter of the Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001) factory manual.

CEILING LIGHTS

G106

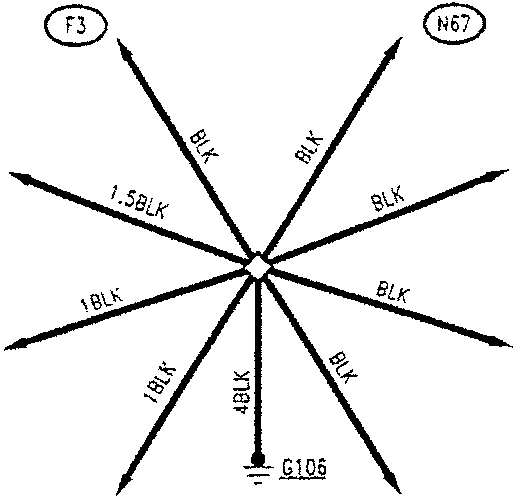

Central electrical diagram showing connections for ceiling lights, antitheft device, door locking system, motronic/IAW TD engine control, heated seats G355a and G355b, and doors open sensors. Wires are labeled with colors such as BLK, 1BLK, 1.5BLK, 4BLK, and the central point is marked G106.

G109 (Boxer 1.3 version)

IAW S31 BLU BLK G109

G143 (Boxer versions)

POWER SUPPLY A1 10BLK G143

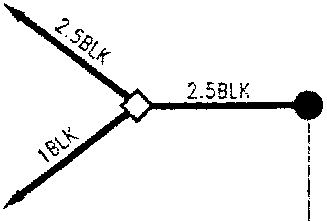

Diagram showing ABS G272 and ABS TB connected to G143 via 2.5BLK and 1BLK wires.
