G267 (Boxer versions)
- Make
- Alfa Romeo
- Model
- 145/146 Electrical System Diagnosis Manual, Volume 3
- Year
- 1994–2001
- Section
- Location of earths › G267 (Boxer versions)
145 electrical system diagnosisG267 (Boxer versions)
G267 (Boxer versions) – diagram from the 145 electrical system diagnosis chapter of the Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001) factory manual.
G267 (Boxer versions)
G318 (TD version)
G318 (T.SPARK version)

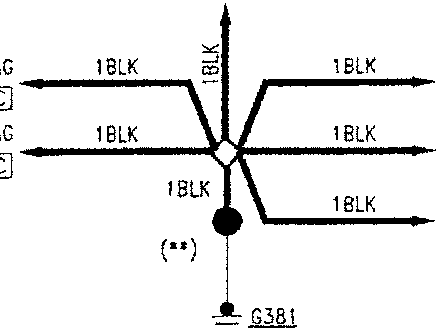

G381
(•) Variant from chassis no...
(*) Up to Model Year '97
(**) From Model Year '98
