145 electrical system diagnosisComponents and connectors

COMPONENTS AND CONNECTORS

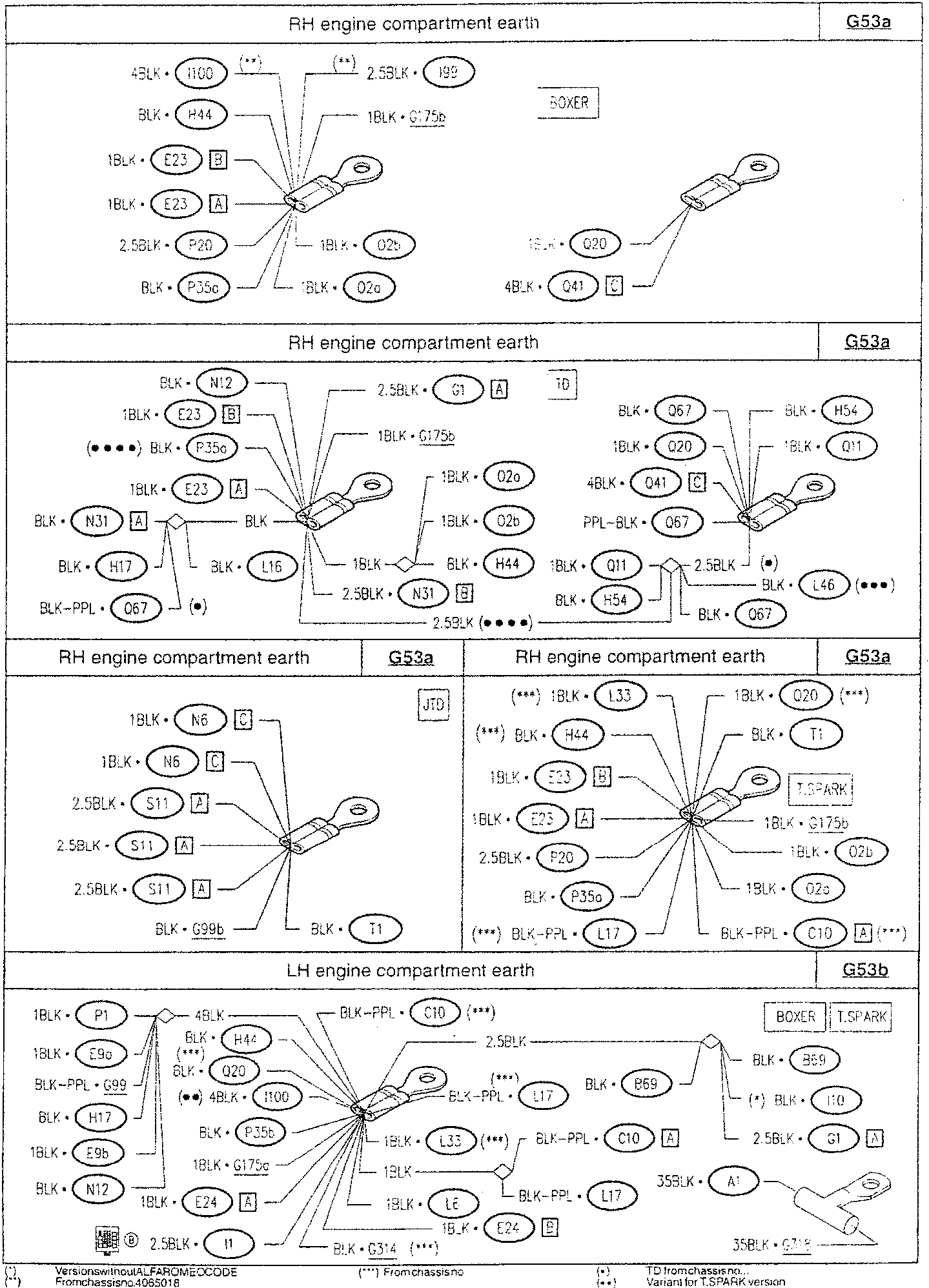

RH engine compartment earth diagram with multiple wire connections labeled with color codes and component identifiers such as 4BLK·I100, 2.5BLK·I99, BLK·H44, etc., connected to a central terminal, and another terminal on the right side with connections like 4BLK·Q41, 1BLK·Q20, etc.

RH engine compartment earth G53a

RH engine compartment earth diagram with multiple wire connections labeled with color codes and component identifiers such as BLK·N12, 1BLK·E23, 2.5BLK·G1, etc., connected to a central terminal, and another terminal on the right side with connections like BLK·Q67, 1BLK·Q20, etc.

RH engine compartment earth G53a

RH engine compartment earth diagram with multiple wire connections labeled with color codes and component identifiers such as 1BLK·N6, 2.5BLK·S11, BLK·G99b, etc., connected to a central terminal, and another terminal on the right side with connections like 1BLK·L33, 1BLK·Q20, etc.

RH engine compartment earth G53a

RH engine compartment earth diagram with multiple wire connections labeled with color codes and component identifiers such as 1BLK·L33, BLK·H44, 1BLK·E23, etc., connected to a central terminal, and another terminal on the right side with connections like 1BLK·Q20, BLK·T1, etc.

RH engine compartment earth G53a

LH engine compartment earth diagram with multiple wire connections labeled with color codes and component identifiers such as 1BLK·P1, 4BLK, BLK·H44, etc., connected to a central terminal, and another terminal on the right side with connections like BLK·B69, 2.5BLK·G1, etc.

LH engine compartment earth G53b

(*) TD from chassis no...
(**) Variant for T.Spark version
(***) TD from chassis no...

(1) Versions without ALFAROME CODE
From chassis no: 4065016
