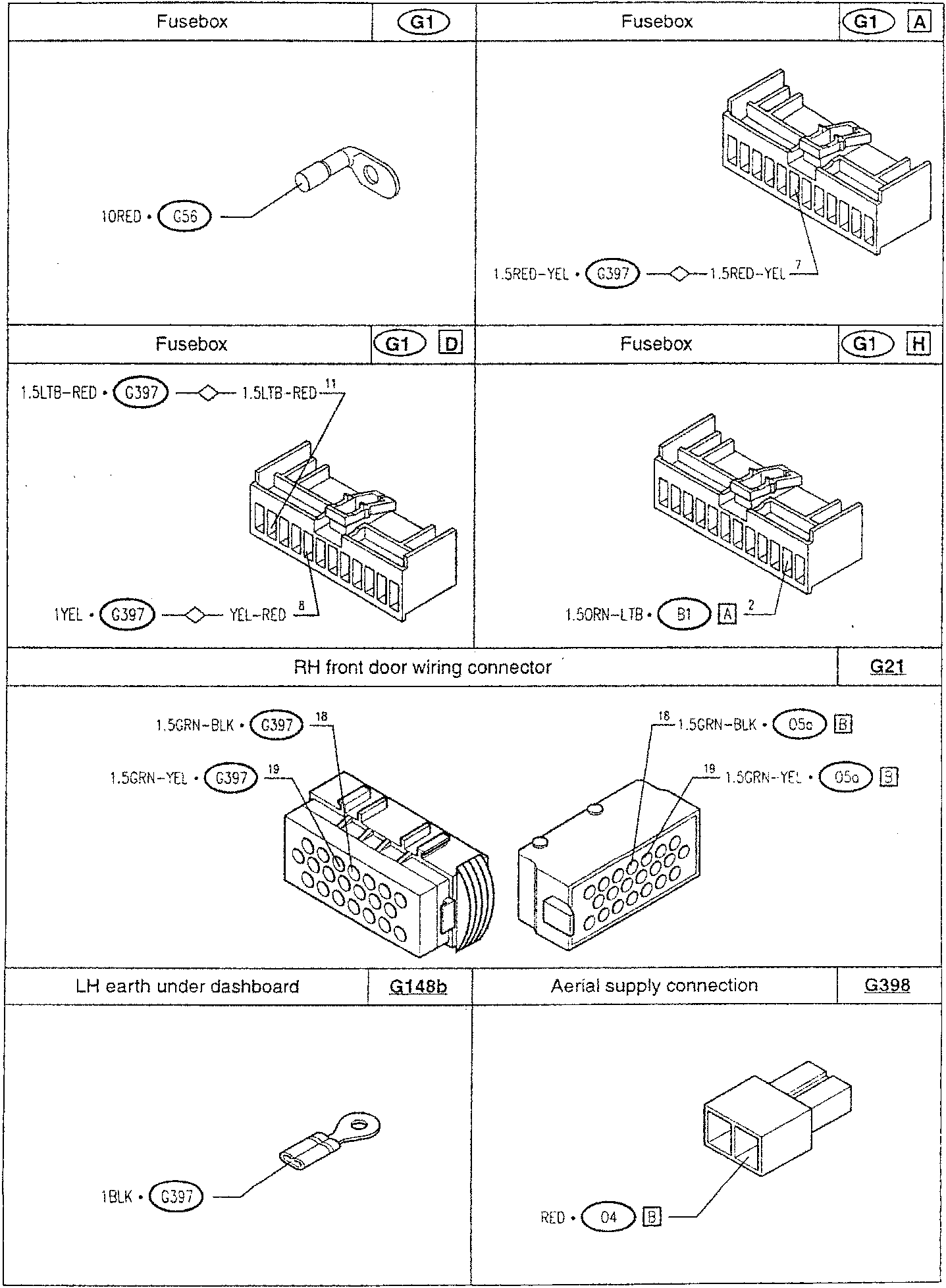

COMPONENTS AND CONNECTORS

F1	Fusebox	G1	Fusebox	G1	A
10RED • G56			1.5RED-YEL • G397 — 1.5RED-YEL 7
						1.5RED-YEL • G397 — 1.5RED-YEL 7
Fusebox	G1	D	Fusebox	G1	H
1.5LTB-RED • G397 — 1.5LTB-RED 11	1YEL • G397 — YEL-RED 8	1.5ORN-LTB • B1 A 2
RH front door wiring connector			G21
1.5GRN-BLK • G397 18	1.5GRN-YEL • G397 19	1.5GRN-BLK • 05a B	1.5GRN-YEL • 05a B
LH earth under dashboard	G148b	Aerial supply connection	G398
1BLK • G397	RED • 04 B
