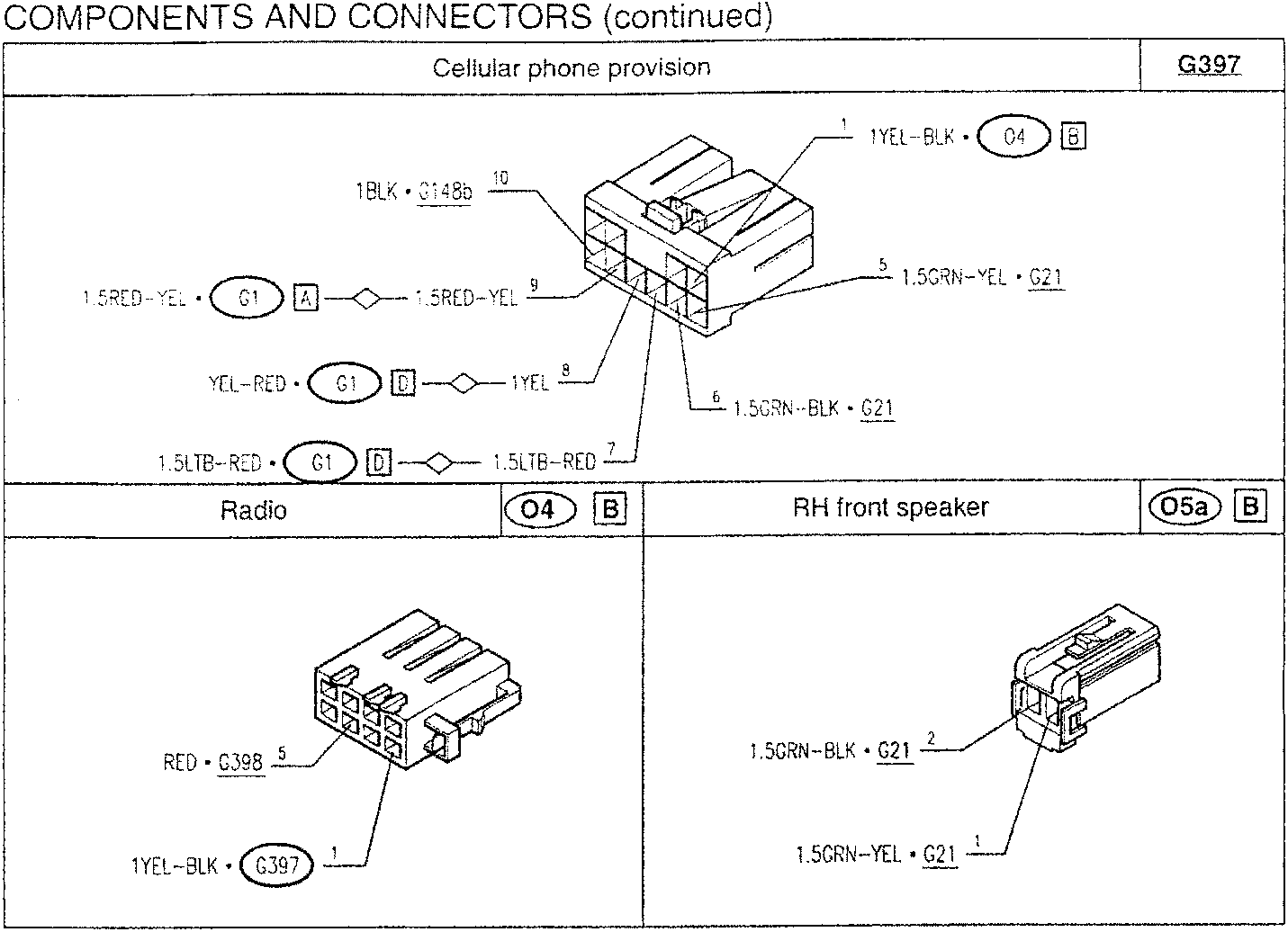

COMPONENTS AND CONNECTORS (continued)

Cellular phone provision		G397
1YEL-BLK • O4 B	1BLK • G148b 10	1.5CRN-YEL • G21 5
1.5RED-YEL • G1 A	1.5RED-YEL 9	1.5GRN-BLK • G21 6
YEL-RED • G1 D	1YEL 8
1.5LTB-RED • G1 D	1.5LTB-RED 7

Radio		O4 B	RH front speaker	O5a B
RED • G398 5	1YEL-BLK • G397 1	1.5GRN-BLK • G21 2	1.5CRN-YEL • G21 1
