Radio Telephone Provision › Location of components
145 electrical system diagnosisLocation of components

Location of components – diagram from the 145 electrical system diagnosis chapter of the Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001) factory manual.

LOCATION OF COMPONENTS

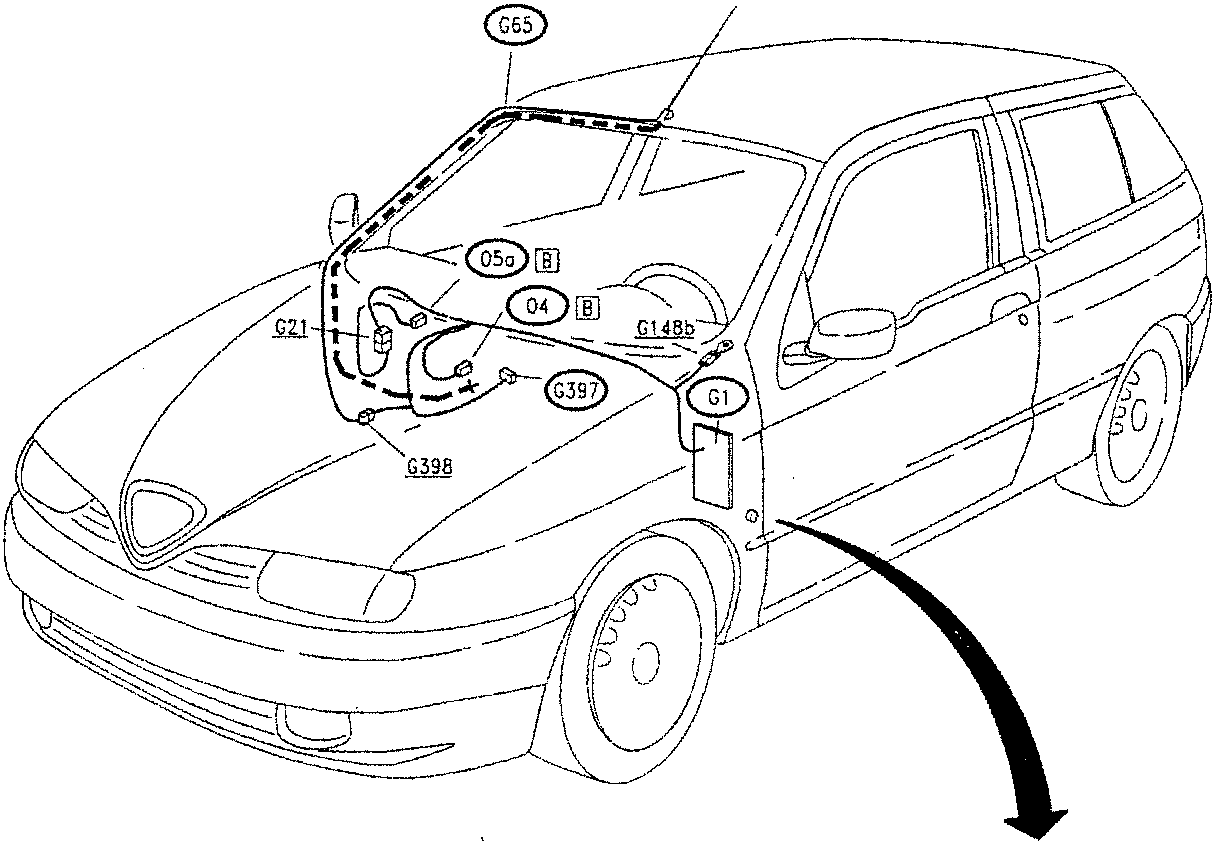

Line drawing of a car showing component locations with labels G65, 05a B, 04 B, G148b, G397, G398, G21, and G1. A curved arrow points from the car to a diagram of an electrical fuse box labeled F2, which shows fuses F16 and F15.
  1. G65
  2. 05a B
  3. 04 B
  4. G148b
  5. G397
  6. G398
  7. G21
  8. G1
Diagram of an electrical fuse box with labeled fuses F16 and F15.
