145 electrical system diagnosisComponents and connectors

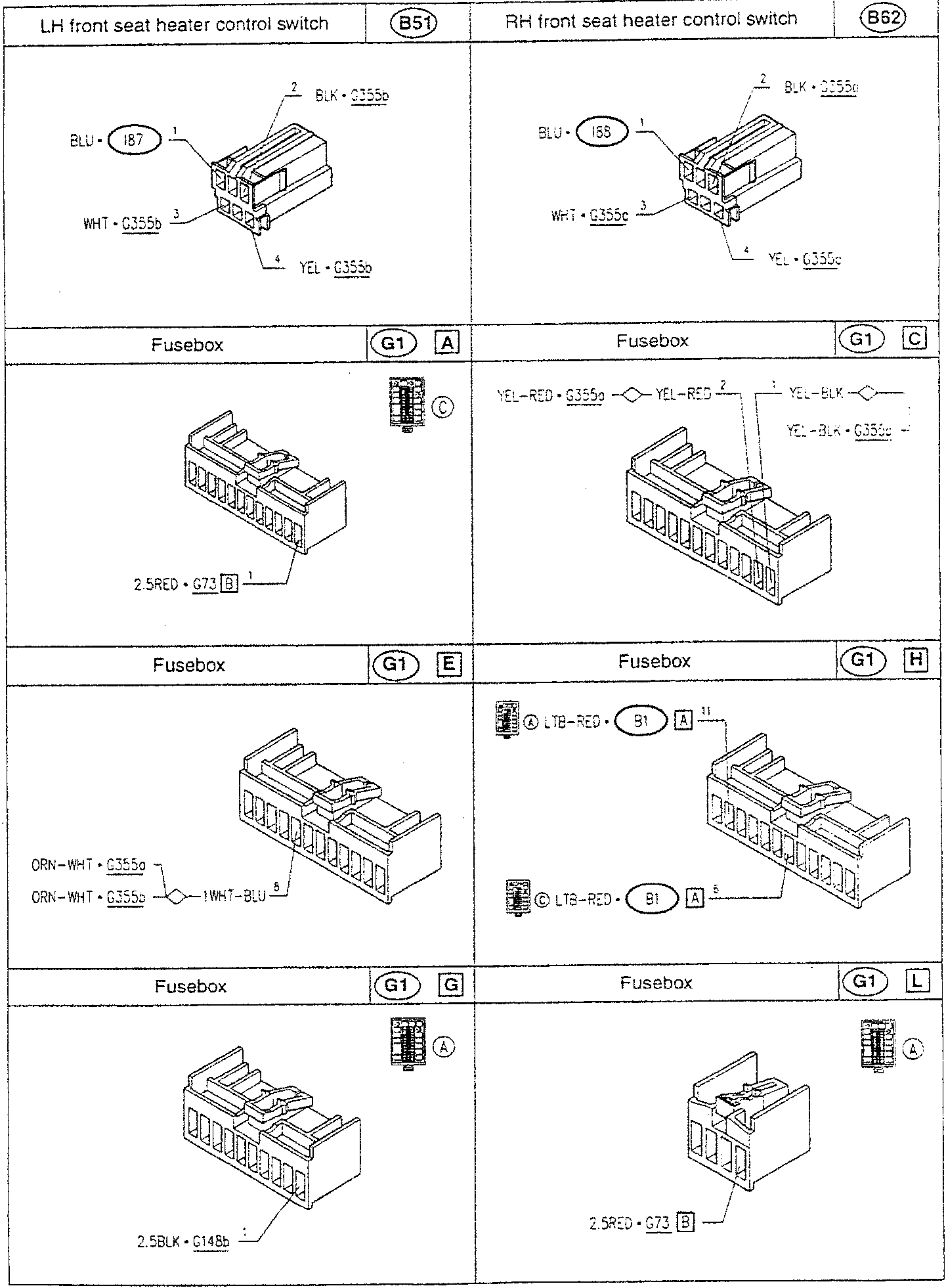

COMPONENTS AND CONNECTORS
| F1 | B51 | B62 |
|---|---|---|
| LH front seat heater control switch | — | RH front seat heater control switch |
|
| G1 A | G1 C |
|---|---|
| Fusebox | Fusebox |
| G1 E | G1 H |
|---|---|
| Fusebox | Fusebox |
| G1 G | G1 L |
|---|---|
| Fusebox | Fusebox |
