COMPONENTS AND CONNECTORS (cont.d)

Make

Alfa Romeo

Model

145/146 Electrical System Diagnosis Manual, Volume 3

Year

1994–2001

Section

Seats › COMPONENTS AND CONNECTORS (cont.d)

145 electrical system diagnosisCOMPONENTS AND CONNECTORS (cont.d)

COMPONENTS AND CONNECTORS (cont.d)

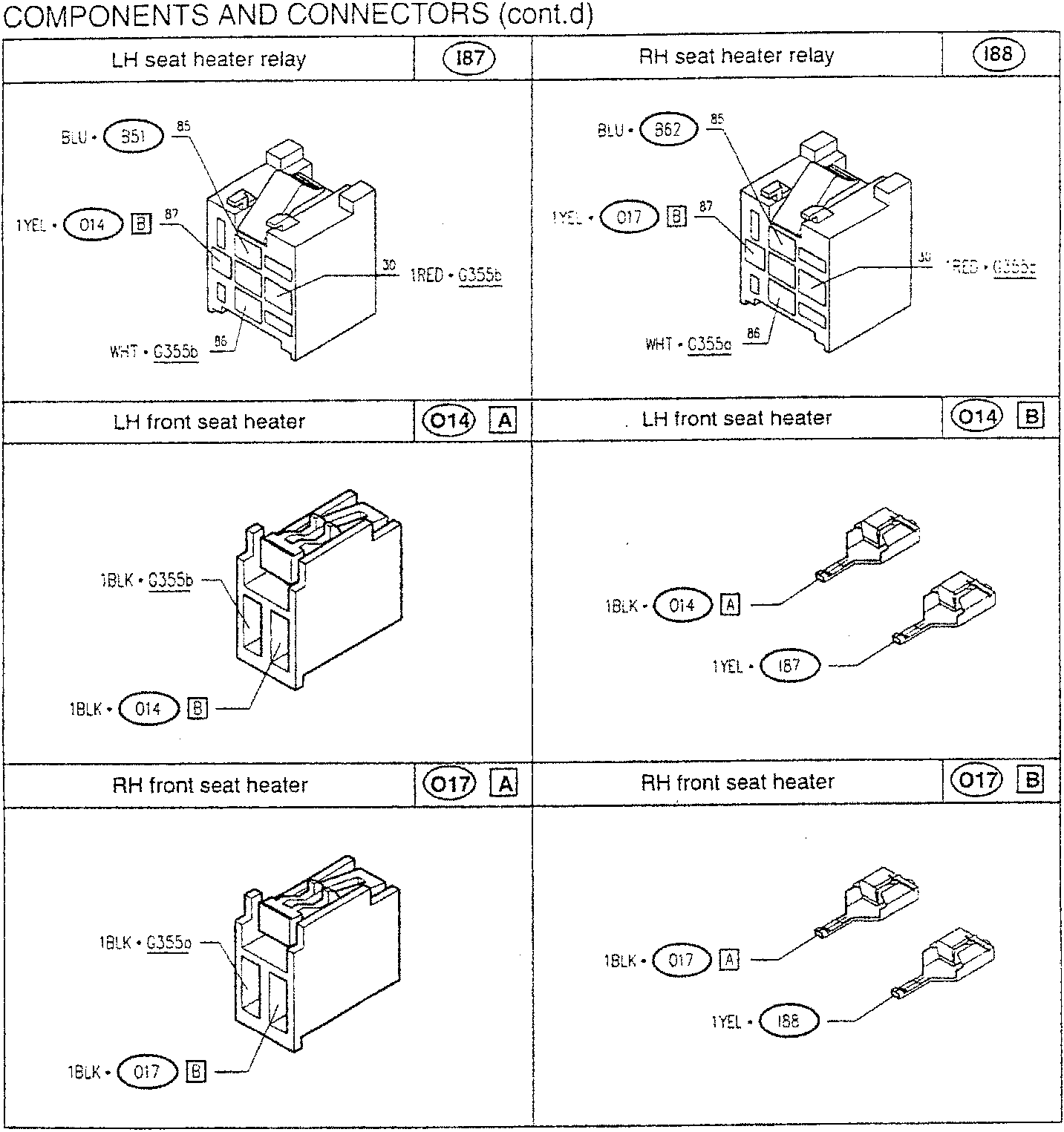

LH seat heater relay	187	RH seat heater relay	188
		BLU • 351	BLU • 562	1YEL • 014 B 87	1YEL • 017 B 87	1RED • G355b	1RED • G355c	WHT • G355b	WHT • G355c

LH front seat heater	014 A	LH front seat heater	014 B
		1BLK • G355b	1BLK • 014 A	1YEL • 187	1BLK • 014 B

RH front seat heater	017 A	RH front seat heater	017 B
		1BLK • G355c	1BLK • 017 A	1YEL • 188	1BLK • 017 B
