145 electrical system diagnosisCOMPONENTS AND CONNECTORS (cont.d)
COMPONENTS AND CONNECTORS (cont.d)

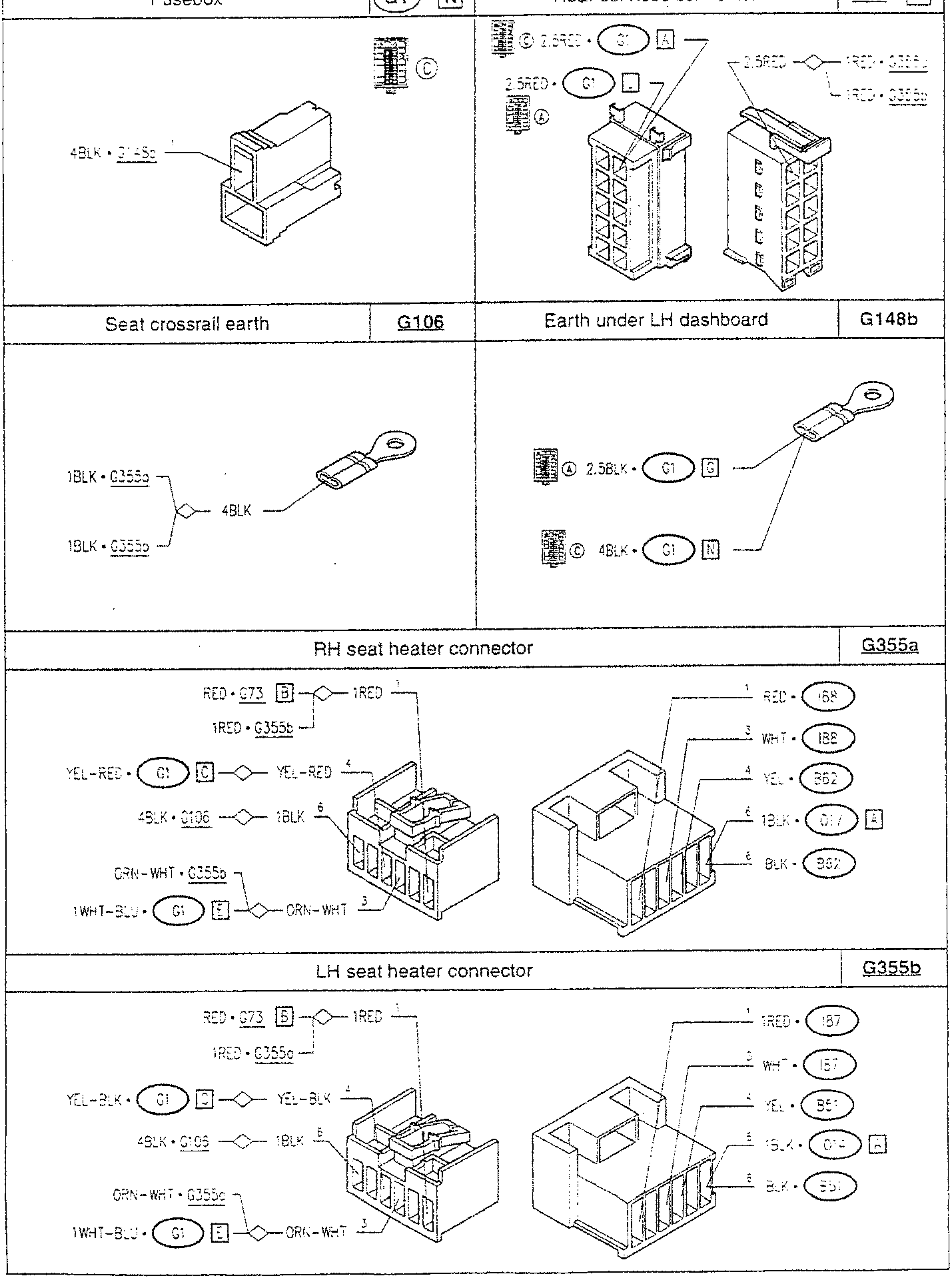

| Fusebox | G1 N | Rear services connector | G73 B |
|---|---|---|---|
|
4BLK • G1•45b | 2.5RED • G1 • A 2.5RED • G73 • B |
| Seat crossrail earth | G106 | Earth under LH dashboard | G148b |
|---|---|---|---|
| 1BLK • G355a 19LK • G355a |
2.5BLK • G1 • C 4BLK • G1 • N |
RH seat heater connector
LH seat heater connector
