Components and connectors
- Make
- Alfa Romeo
- Model
- 145/146 Electrical System Diagnosis Manual, Volume 3
- Year
- 1994–2001
- Section
- Sunroof › Components and connectors
145 electrical system diagnosisComponents and connectors

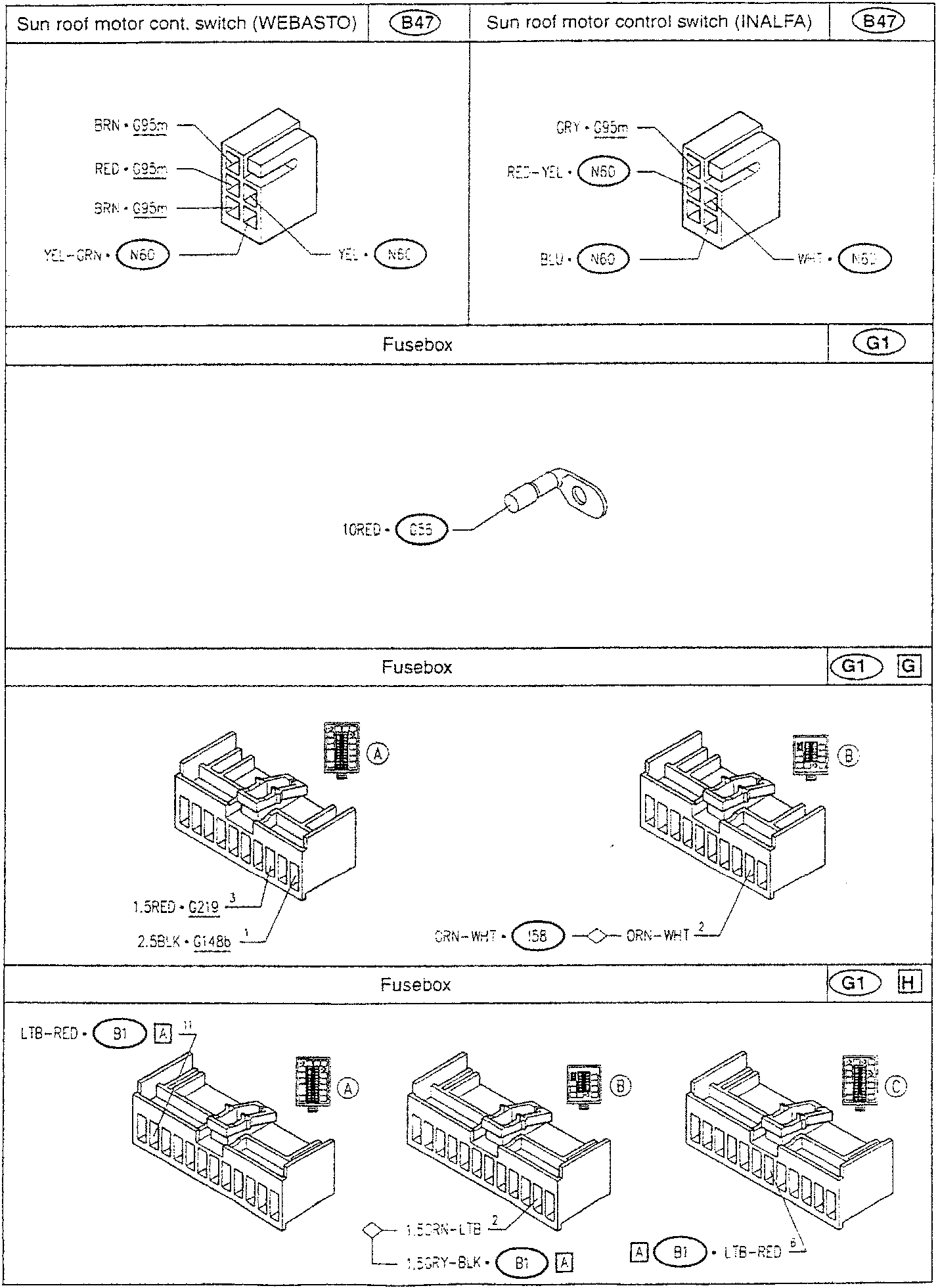

Components and connectors – diagram from the 145 electrical system diagnosis chapter of the Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001) factory manual.
COMPONENTS AND CONNECTORS
| F1 Sun roof motor cont. switch (WEBASTO) | B47 | Sun roof motor control switch (INALFA) | B47 |
|---|---|---|---|
|
|
Fusebox
Fusebox
| G1 | G |
|---|---|
|
|
|
Fusebox
| G1 | H |
|---|---|
|
|
|
