Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001)01 · 145 electrical system diagnosis
01 · Diagnostics

COMPONENTS AND CONNECTORS (cont.d)

Make
Alfa Romeo
Model
145/146 Electrical System Diagnosis Manual, Volume 3
Year
1994–2001
Section
Sunroof › COMPONENTS AND CONNECTORS (cont.d)
145 electrical system diagnosisCOMPONENTS AND CONNECTORS (cont.d)

COMPONENTS AND CONNECTORS (cont.d)

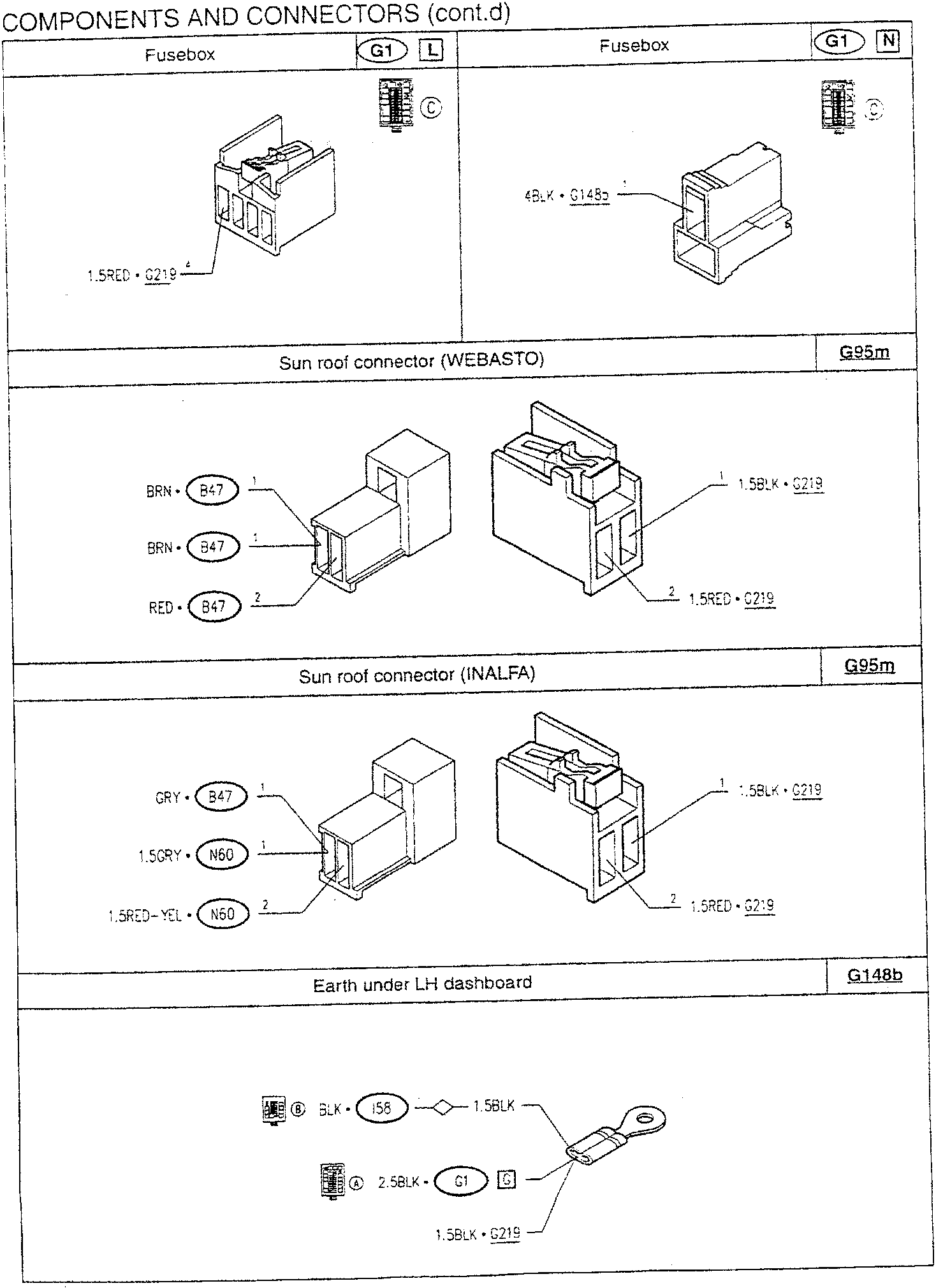

Fusebox G1 L Fusebox G1 N
Fusebox with wire labeled 1.5RED • G219
G1 L
Fusebox with wire labeled 4BLK • G148s
G1 N

Sun roof connector (WEBASTO)

G95m
Sun roof connector (WEBASTO) with wires labeled BRN • B47, RED • B47
Sun roof connector (WEBASTO) with wires labeled 1.5BLK • G219, 1.5RED • G219

Sun roof connector (INALFA)

G95m
Sun roof connector (INALFA) with wires labeled GRY • B47, 1.5GRY • N60, 1.5RED-YEL • N60
Sun roof connector (INALFA) with wires labeled 1.5BLK • G219, 1.5RED • G219

Earth under LH dashboard

G148b
Earth under LH dashboard with wires labeled 5LK • 158, 2.5BLK • G1, 1.5BLK • G219
