COMPONENTS AND CONNECTORS (cont.d)

Make

Alfa Romeo

Model

145/146 Electrical System Diagnosis Manual, Volume 3

Year

1994–2001

Section

Sunroof › COMPONENTS AND CONNECTORS (cont.d)

145 electrical system diagnosisCOMPONENTS AND CONNECTORS (cont.d)

COMPONENTS AND CONNECTORS (cont.d)

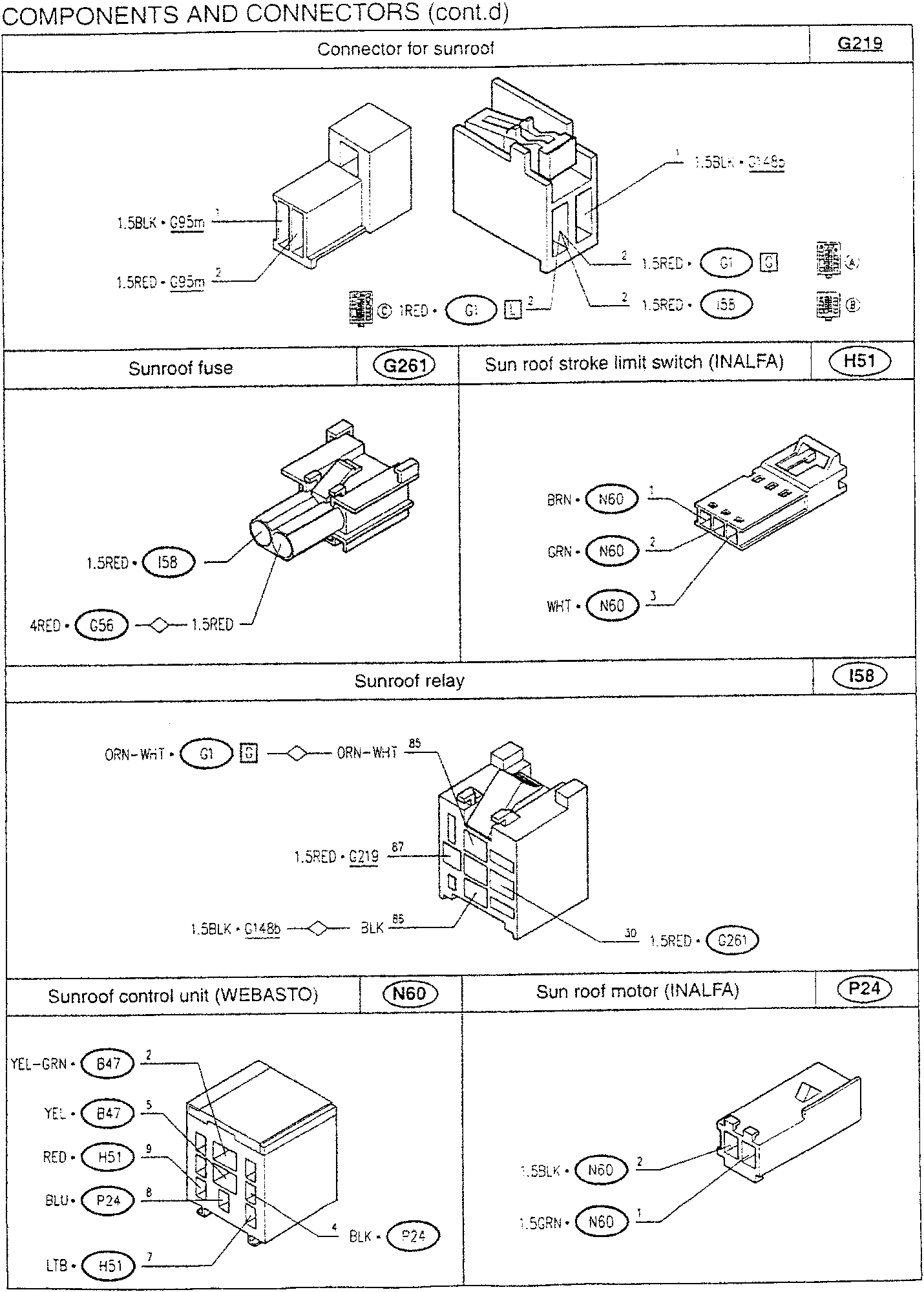

Connector for sunroof	G219
	1.5BLK • G:480
1.5BLK • G95m1	1.5RED • G1
1.5RED • G95m2	1.5RED • I55

Sunroof fuse	G261	Sun roof stroke limit switch (INALFA)	H51
	1.5RED • I58		BRN • N601
4RED • G56 — 1.5RED	GRN • N602
WHT • N603

Sunroof relay	I58
	ORN-WHT • G1 — ORN-WHT 85
1.5RED • G219	1.5RED • G261
1.5BLK • C14Bb — BLK 85

Sunroof control unit (WEBASTO)	N60	Sun roof motor (INALFA)	P24
	YEL-GRN • B472		1.5BLK • N602
YEL • B475	1.5GRN • N601
RED • H519
BLU • P248
LTB • H517
BLK • P244
