Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001)02 · 146 electrical system diagnosis
02 · Diagnostics

Faultfinding table (page 2 of 2)

Make
Alfa Romeo
Model
145/146 Electrical System Diagnosis Manual, Volume 3
Year
1994–2001
Section
Car Radio
146 electrical system diagnosisFaultfinding table · page 2 of 2

Front speaker O5a - O5b

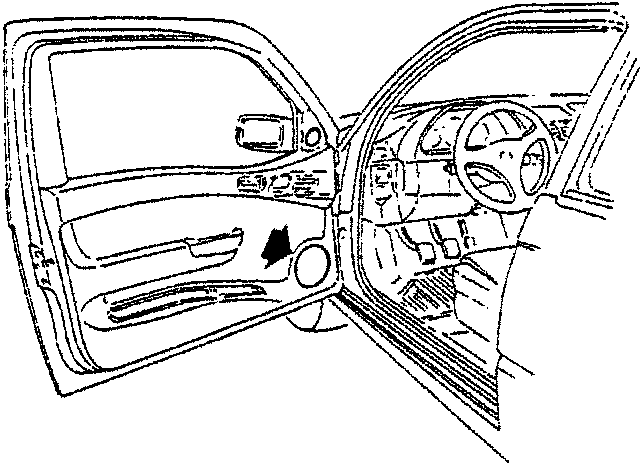

Diagram showing front door open with arrow pointing to speaker location
SPECIFICATIONS
Passband70 ÷ 12000 Hz
Resonance frequency70 ± 12 Hz
Nominal impedance4 ± 20% Ω
Induction0.72 ± 7% T
RMS Power (DIN 45573)20 W
Weight430 ± 10% g.
ø of speaker165 mm

Front Tweeter O31a - O31b

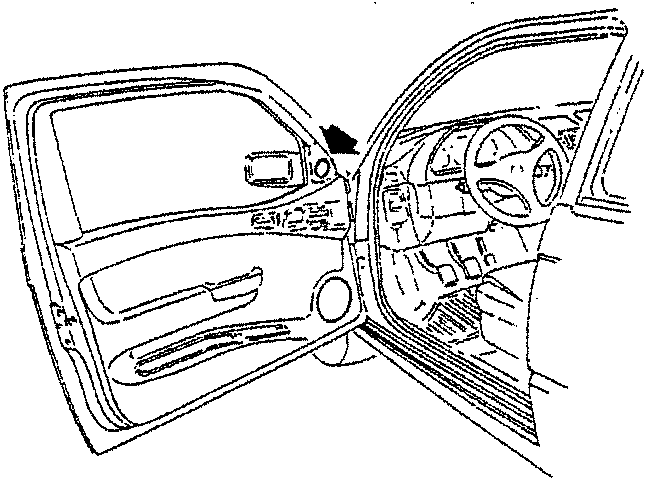

Diagram showing front door open with arrow pointing to tweeter location
SPECIFICATIONS
Passband5000 ÷ 20000 Hz
Resonance frequency2500 ± 600 Hz
Nominal impedance4 ± 20% Ω
Induction1.06 ± 7% T
RMS power (DIN 45573)30 W
Weight55 ± 15% g.
Type of crossover3.3 µF
Crossover frequency5000 Hz
Type of tweeterDOME
