Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001)02 · 146 electrical system diagnosis
02 · Diagnostics

Components and Connectors

Make
Alfa Romeo
Model
145/146 Electrical System Diagnosis Manual, Volume 3
Year
1994–2001
Section
Check Panel › Components and Connectors
146 electrical system diagnosisComponents and Connectors

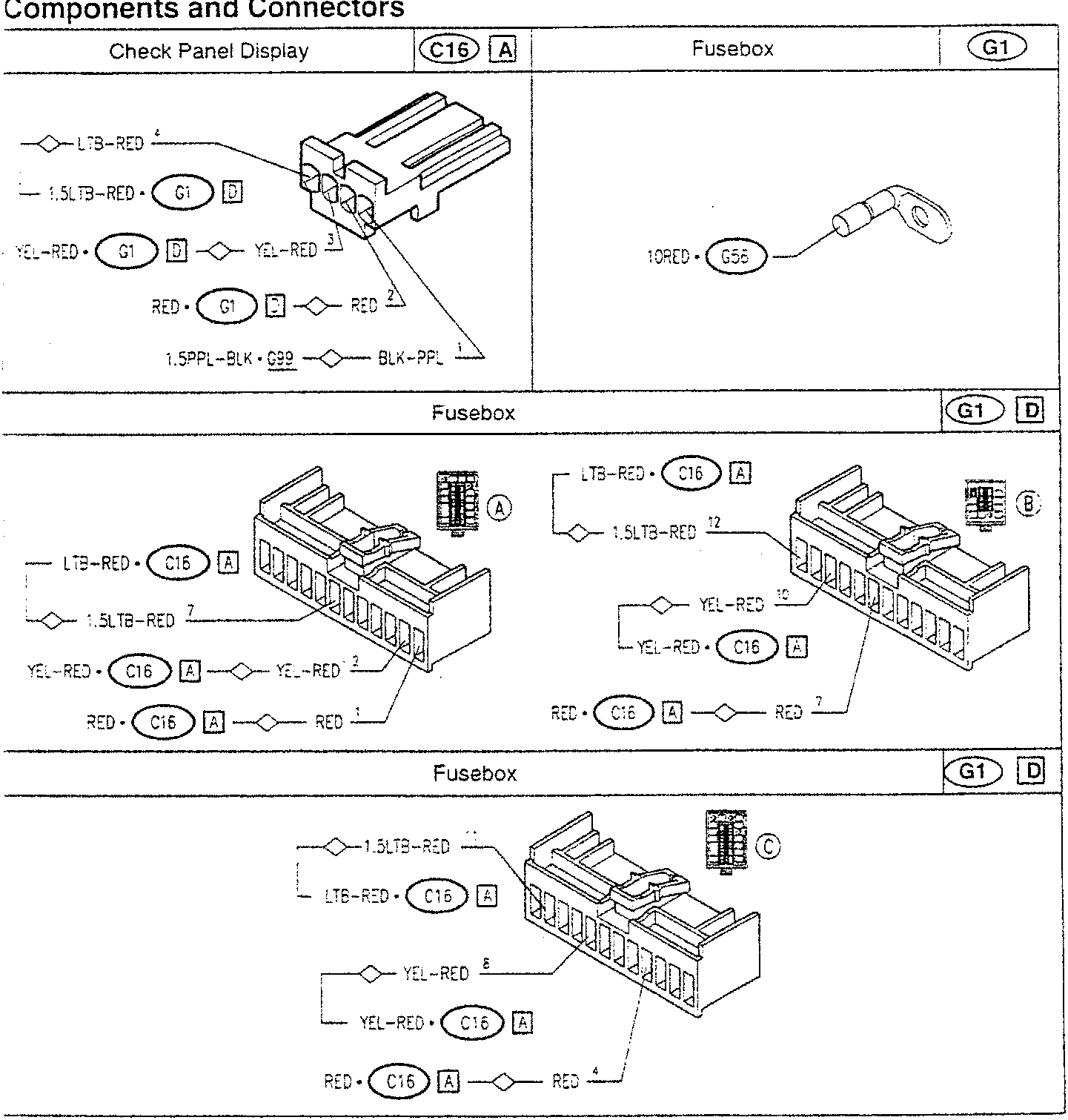

Components and Connectors – diagram from the 146 electrical system diagnosis chapter of the Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001) factory manual.

Components and Connectors

Check Panel Display C16 A Fusebox G1
LTB-RED6 1.5LTB-RED • G1 D YEL-RED • G1 D RED • G1 D
1.5PPL-BLK • G99 BLK-PPL1
Fusebox diagram with wire connections labeled: 10RED • G55, LTB-RED • C16 A, 1.5LTB-RED 12, YEL-RED • C16 A, RED • C16 A, RED 7
